TB9120FTG(EL)
AUTOMOTIVE STEPPING MOTOR DRIVERManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More

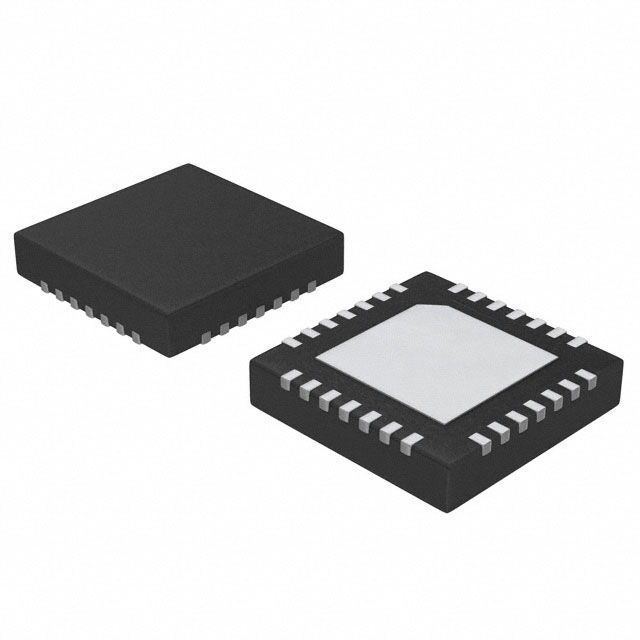

Toshiba Semiconductor and Storage TB9120FTG-EL- is a bipolar stepping motor driver featuring Bi-CMOS technology. This automotive-grade component, qualified to AEC-Q100 standards, is designed for high-performance applications. It offers advanced PWM control for precise motor operation, supporting step resolutions from 1 to 1/256. The driver is housed in a compact 28-VQFN (6x6) package with exposed pad and wettable flanks for robust surface mounting. With a load voltage range of 4.5V to 18V and a supply voltage of 4.75V to 5.25V, it enables efficient power management. The output configuration includes two half bridges. This device is integral to automotive systems requiring precise motor control, such as advanced driver-assistance systems (ADAS) and automotive infotainment components.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Function | Driver |
| Current - Output | - |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | - |
| Technology | Bi-CMOS |
| Voltage - Load | 4.5V ~ 18V |
| Supplier Device Package | 28-VQFN (6x6) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1 ~ 1/256 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
