TB9057FG
AUTOMOTIVE MOTOR H-BRIDGE DRIVERManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More

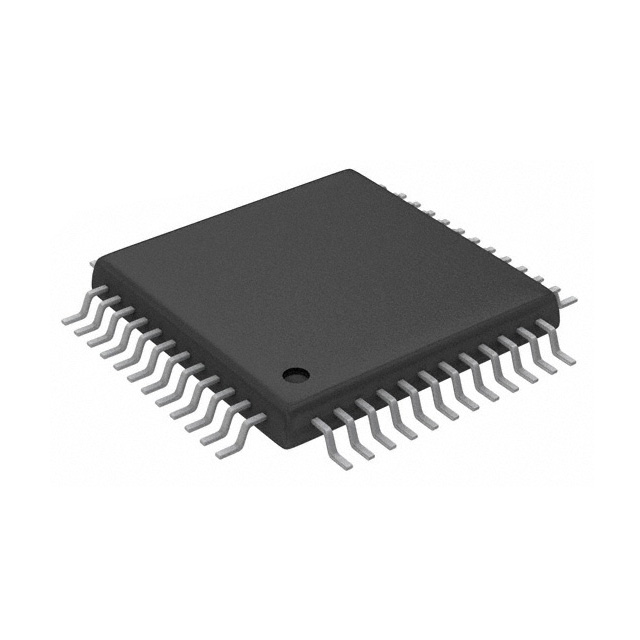

Toshiba Semiconductor and Storage TB9057FG is a Bi-CMOS H-Bridge motor driver designed for automotive applications. This component features PWM interface capabilities for precise control of brushed DC motors. Its 48-LQFP (7x7) package facilitates surface mounting. The TB9057FG operates within a voltage range of 5V to 21V and is qualified under AEC-Q100 standards, ensuring reliability in demanding automotive environments. This driver is suitable for various automotive systems requiring efficient motor control.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Function | Driver |
| Current - Output | - |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Pre-Driver |
| Voltage - Supply | 5V ~ 21V |
| Applications | - |
| Technology | Bi-CMOS |
| Voltage - Load | - |
| Supplier Device Package | 48-LQFP (7x7) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
