TB9051FTG,EL
MOTOR CONTROLLER SINGLE CHANNELManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TB9051FTG-EL is a highly integrated Bi-CMOS motor driver featuring a single-channel, half-bridge output configuration. This automotive-grade component is designed for brushed DC motor control applications, offering a robust solution for demanding environments. The device accepts a 4.5V to 5.5V supply voltage and delivers up to 6A of output current. Control is managed via a PWM interface, enabling precise speed regulation. The TB9051FTG-EL is housed in a compact 28-QFN (6x6) package, suitable for surface-mount assembly and supplied on tape and reel. Its functionality encompasses both the control and power stages, simplifying system design. This component is qualified to AEC-Q100 standards, making it suitable for automotive applications such as electric power steering, automotive climate control, and advanced driver-assistance systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

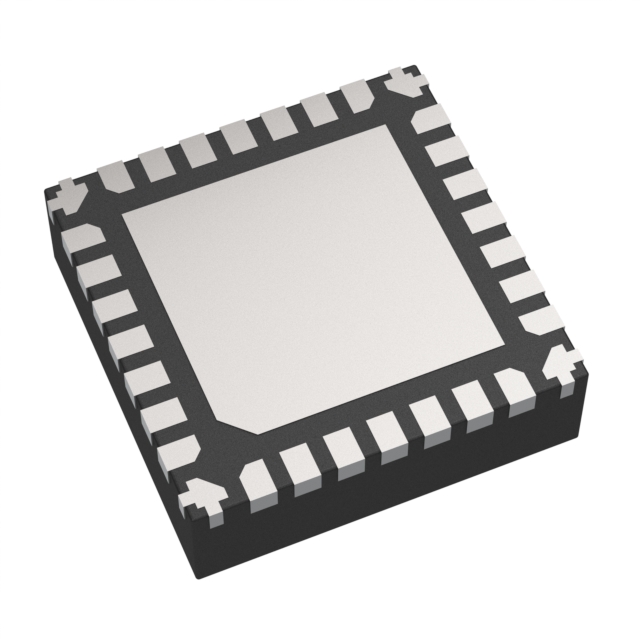

| Package / Case | 28-PowerQFN |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 6A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Applications | - |
| Technology | Bi-CMOS |
| Voltage - Load | - |
| Supplier Device Package | 28-QFN (6x6) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
