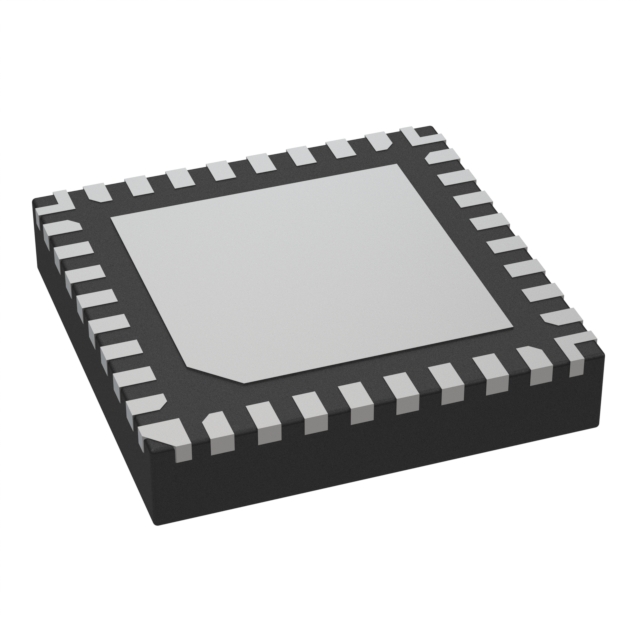

TB67S539FTG(O,EL)
40V/2A 32 MICRO-STEP STEPPING MOManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver NMOS PWM 32-VQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | PWM |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 6V |
| Applications | General Purpose |
| Technology | NMOS |
| Voltage - Load | 4.5V ~ 34V |
| Supplier Device Package | 32-VQFN (5x5) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16, 1/32 |
