TB67S179FTG,EL
IC MOTOR DRIVER UNIPOLAR 48VQFNManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More

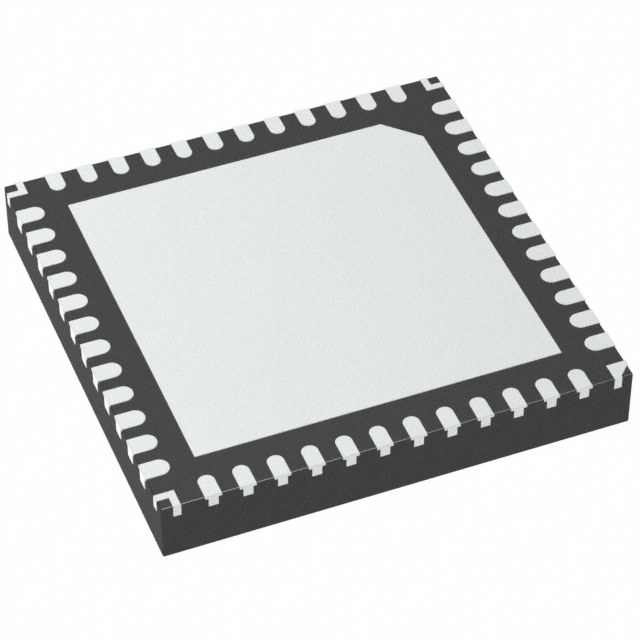

Toshiba Semiconductor and Storage TB67S179FTG-EL is a unipolar stepper motor driver IC featuring a parallel interface. This fully integrated component combines control and power stages, utilizing Power MOSFET technology for efficient operation. The TB67S179FTG-EL supports step resolutions from 1 to 1/32, enabling precise motor control. It is housed in a 48-VQFN (7x7) package with an exposed pad, suitable for surface mounting. The device operates with a load voltage range of 10V to 60V and a supply voltage of 4.75V to 5.25V, delivering up to 1.5A of output current. The output configuration includes four half-bridges. This driver is well-suited for general-purpose applications across various industries requiring accurate stepper motor actuation, operating within a junction temperature range of -20°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 10V ~ 60V |
| Supplier Device Package | 48-VQFN (7x7) |
| Motor Type - Stepper | Unipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1 ~ 1/32 |
