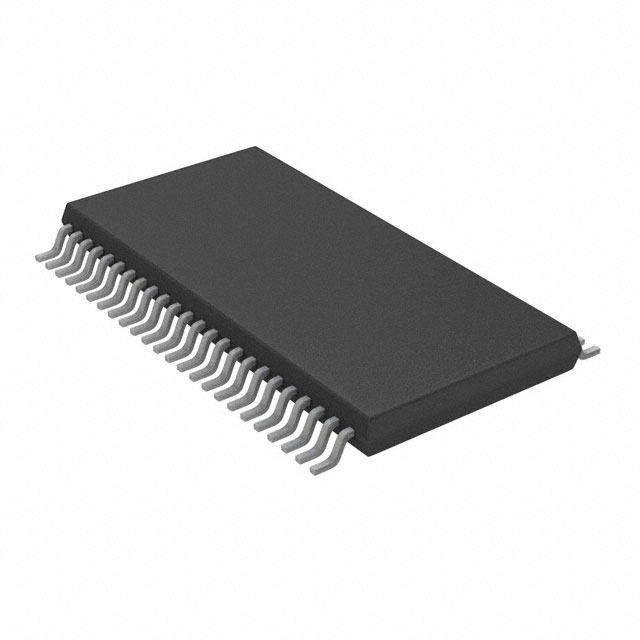

TB67S101AFNG,EL
IC MOTOR DRIVER BIPOLAR 48HTSSOPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TB67S101AFNG-EL is a bipolar stepper motor driver IC featuring a fully integrated control and power stage. This device utilizes Power MOSFET technology for efficient operation. The TB67S101AFNG-EL offers selectable step resolutions of 1, 1/2, and 1/4, and supports current output up to 3A. Its output configuration includes four half-bridge drivers. Designed for surface mount applications, it is supplied in a 48-HTSSOP package with an exposed pad, on tape and reel. The operating temperature range is -20°C to 150°C (TJ). This component is suitable for general-purpose applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFSOP (0.240"", 6.10mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 3A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 10V ~ 47V |
| Supplier Device Package | 48-HTSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2, 1/4 |
