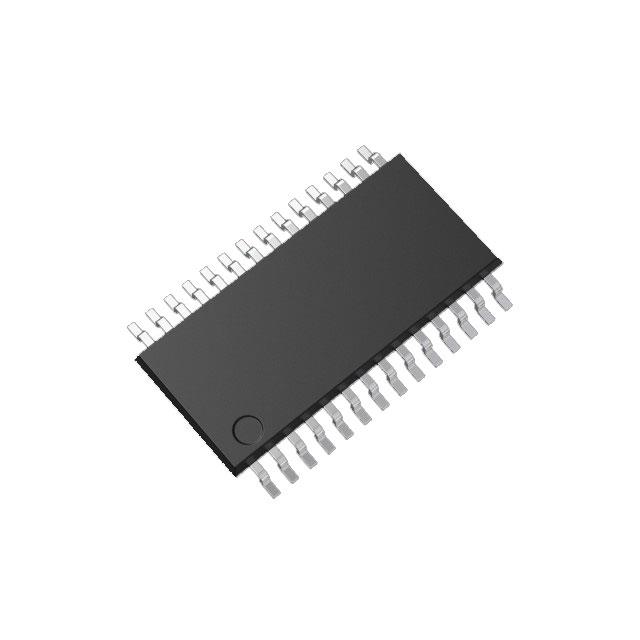

TB67H481FNG,EL
BRUSHED MOTOR CONTROL DRIVER IC,Manufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TB67H481FNG-EL is a DMOS bipolar motor driver IC designed for brushed DC motor control. This fully integrated driver features a control and power stage with an ON/OFF interface for simplified operation. It provides four half-bridge output configurations, enabling precise control of motor direction and speed. With a load voltage range of 8.2V to 44V and a maximum output current of 2.5A, the TB67H481FNG-EL is suitable for demanding applications. The DMOS technology ensures efficient power handling. This component is commonly utilized in industrial automation, robotics, and consumer electronics where robust brushed DC motor driving is required. It is supplied in a 28-HTSSOP package with an exposed pad for enhanced thermal performance, mounted via surface mount. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.5A |
| Interface | ON/OFF |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 8.2V ~ 44V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 8.2V ~ 44V |
| Supplier Device Package | 28-HTSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | 1 |
