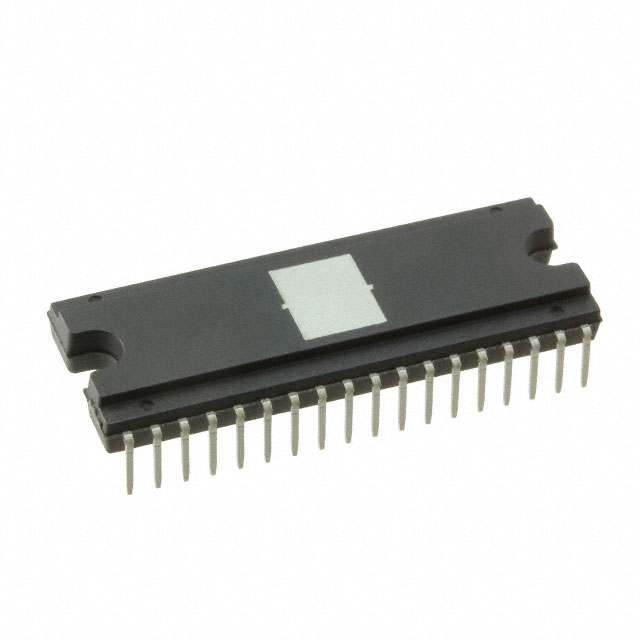

TB67B000HG
IC MOTOR DRVR 13.5V-16.5V 30HDIPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage's TB67B000HG is a fully integrated motor driver IC featuring the control and power stage for Brushless DC (BLDC) motors. This component utilizes IGBT technology and operates with a supply voltage range of 13.5V to 16.5V, supporting load voltages from 50V to 450V. The TB67B000HG provides three half-bridge output configurations and is designed for PWM interface control. With an output current capability of 2A, it is suitable for general-purpose applications across various industries including industrial automation and power systems. The device is supplied in a 30-HDIP package for through-hole mounting, operating within an ambient temperature range of -30°C to 115°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 30-PowerDIP Module |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | PWM |
| Operating Temperature | -30°C ~ 115°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Applications | General Purpose |
| Technology | IGBT |
| Voltage - Load | 50V ~ 450V |
| Supplier Device Package | 30-HDIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
