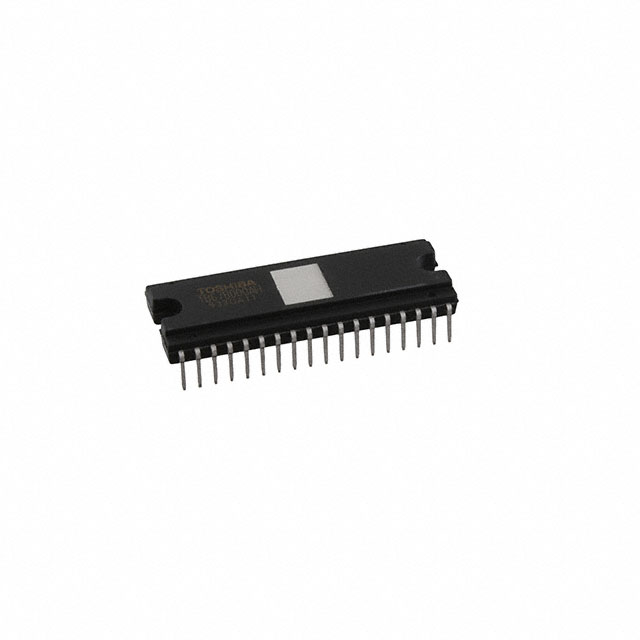

TB67B000AHG
BRUSHLESS MOTOR DRIVER, 600V, 2AManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The Toshiba Semiconductor and Storage TB67B000AHG is a multiphase motor driver featuring an IGBT PWM interface. This fully integrated component combines control and power stage functionality, delivering a 2A output current. Designed for brushless DC (BLDC) motors, it supports up to 450V load voltage and operates from a 13.5V to 16.5V supply. The output configuration includes three half-bridge drivers, suitable for demanding applications. The TB67B000AHG is housed in a 30-HDIP package, facilitating through-hole mounting. Its robust design and specified parameters make it a viable solution for industrial automation, robotics, and power control systems. The operating temperature range is -30°C to 115°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 30-PowerDIP Module |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | PWM |
| Operating Temperature | -30°C ~ 115°C |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Applications | General Purpose |
| Technology | IGBT |
| Voltage - Load | 50V ~ 450V |
| Supplier Device Package | 30-HDIP |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
