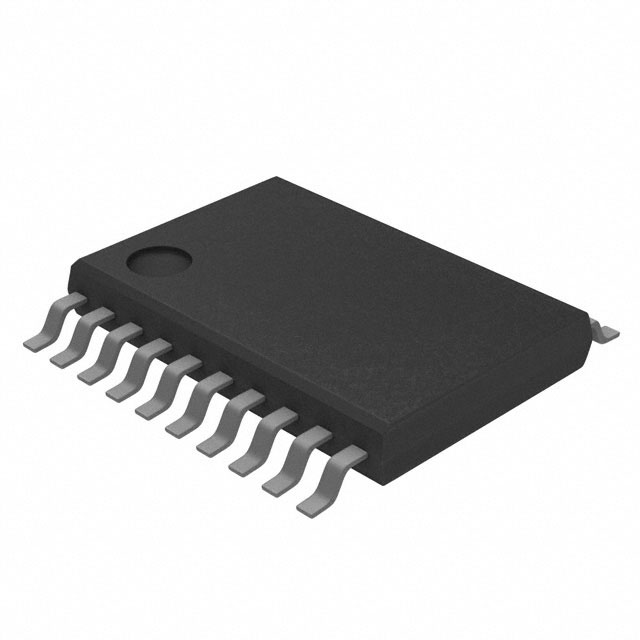

TB6608FNG,C8,EL
IC MTR DRV BIPLR 2.7-5.5V 20SSOPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TB6608FNG-C8-EL is a bipolar stepper motor driver IC. This fully integrated device combines control and power stages, utilizing Power MOSFET technology. It supports parallel interface and offers flexible step resolutions including 1, 1/2, 1/4, and 1/8. The TB6608FNG-C8-EL is designed for operation with a supply voltage range of 2.7V to 5.5V and a load voltage up to 13.5V, delivering an output current of 600mA. Its output configuration features four half-bridge drivers. Packaged in a 20-LSSOP (0.173", 4.40mm Width) for surface mounting, this component operates within an ambient temperature range of -20°C to 85°C. Applications include general-purpose motor control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 600mA |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 2.5V ~ 13.5V |
| Supplier Device Package | 20-SSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2, 1/4, 1/8 |
