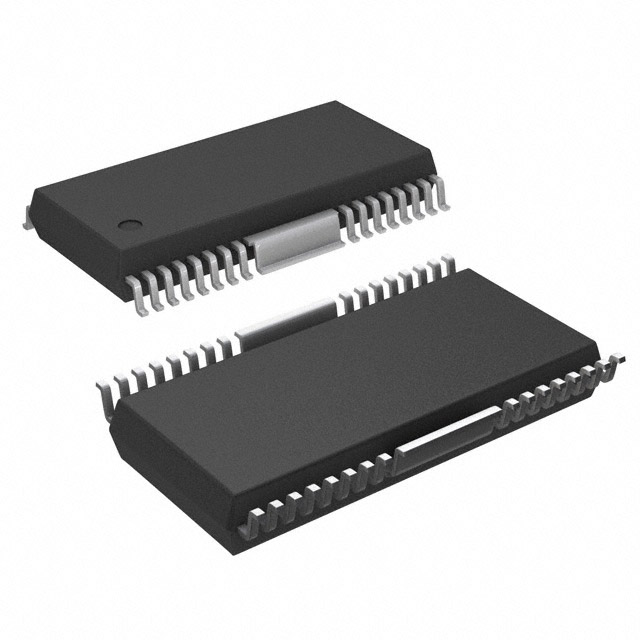

TB6569FG,8,EL
IC MOTOR DRIVER 10V-45V 16HSOPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Motor Driver Bi-CMOS Parallel, PWM 16-HSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-BSOP (0.252"", 6.40mm Width) + 2 Heat Tabs |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 4A |
| Interface | Parallel, PWM |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 10V ~ 45V |
| Applications | General Purpose |
| Technology | Bi-CMOS |
| Voltage - Load | 10V ~ 45V |
| Supplier Device Package | 16-HSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
