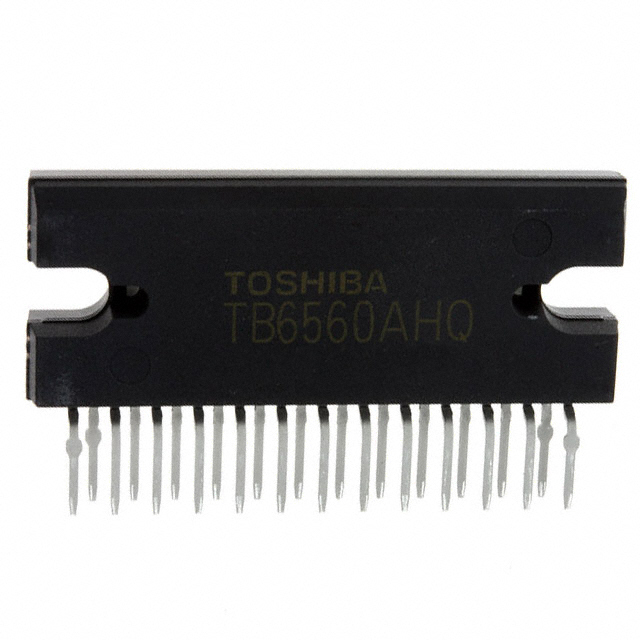

TB6560AHQ,8
IC MTR DRV BIPLR 4.5-5.5V 25HZIPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Bipolar Motor Driver Power MOSFET Parallel 25-HZIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 25-SSIP Formed Leads |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 3A |
| Interface | Parallel |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 4.5V ~ 34V |
| Supplier Device Package | 25-HZIP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
Request a Quote
