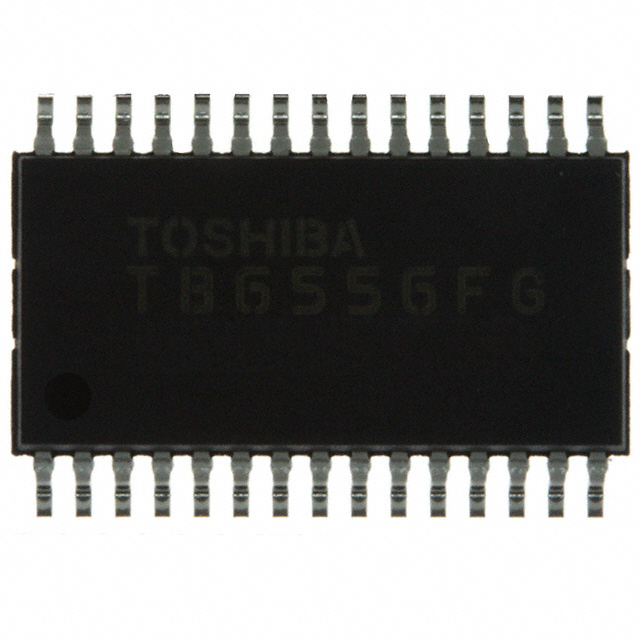

TB6556FG,8,EL,DRY
IC MOTOR CONTROLLER PAR 30SSOPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TB6556FG-8-EL-DRY is a Bi-CMOS motor controller designed for brushless DC (BLDC) motor applications. This component features a parallel interface for control and commutation, and direction management functions. The device is housed in a 30-SSOP package and is suitable for surface mounting. It operates within a temperature range of -30°C to 115°C. The output configuration includes three half-bridges. This motor driver is commonly utilized in fan control systems within industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 30-BSOP (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | Parallel |
| Operating Temperature | -30°C ~ 115°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 6V ~ 10V |
| Applications | Fan Controller |
| Technology | Bi-CMOS |
| Voltage - Load | - |
| Supplier Device Package | 30-SSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
