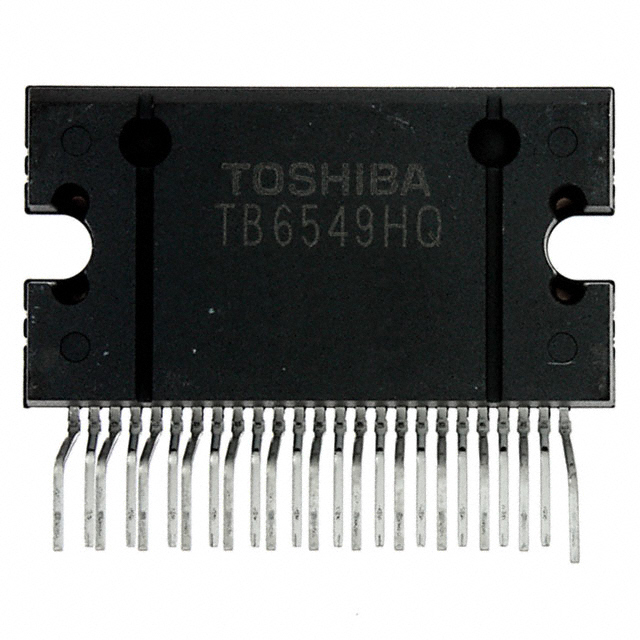

TB6549HQ(O)
IC MOTOR DRIVER 10V-27V 25HZIPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TB6549HQ-O- is a Bi-CMOS, serial interface motor driver featuring a fully integrated control and power stage. This device is designed for brushed DC motor applications, offering a voltage range of 10V to 27V for both supply and load. The TB6549HQ-O- provides a 4.5A output current and employs PWM control for precise motor speed regulation. Its output configuration includes two half-bridges, enabling efficient drive capabilities. The component is housed in a 25-HZIP package with through-hole mounting, suitable for various industrial and consumer electronics applications. The operating temperature range is -20°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tube |
| Package / Case | 25-SSIP Formed Leads |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 4.5A |
| Interface | PWM, Serial |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 10V ~ 27V |
| Applications | General Purpose |
| Technology | Bi-CMOS |
| Voltage - Load | 10V ~ 27V |
| Supplier Device Package | 25-HZIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
