TB62209FG,EL
IC MTR DRV BIPLR 4.5-5.5V 36HSOPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More

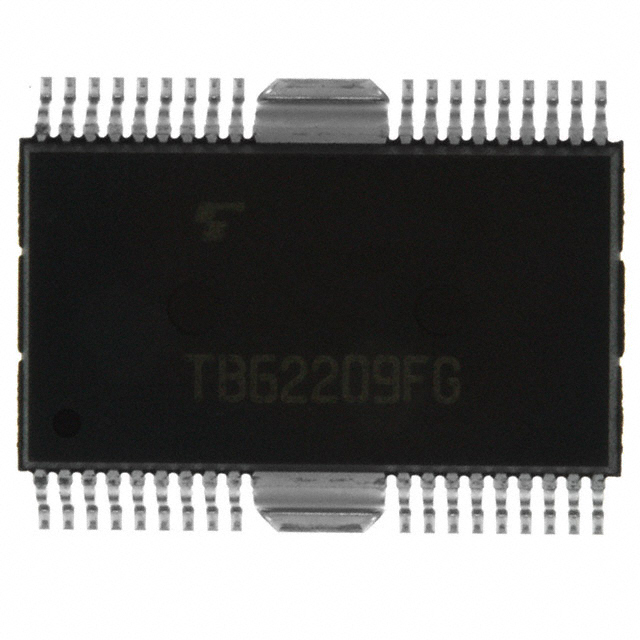

Toshiba Semiconductor and Storage TB62209FG-EL is a bipolar stepper motor driver featuring a DMOS parallel interface. This fully integrated component includes control and power stages, delivering 1.5A output current. It operates over a 4.5V to 5.5V supply voltage range and a 13V to 34V load voltage range. The TB62209FG-EL supports various step resolutions including 1, 1/2, 1/4, 1/8, and 1/16. Its output configuration comprises four half-bridge drivers. Encased in a 36-HSOP package with heat tabs, it is suitable for surface mounting and operates across an extended temperature range of -40°C to 150°C (TJ). This component finds application in general-purpose motor control across various industrial automation and consumer electronics sectors. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSSOP (0.346"", 8.80mm Width) + 2 Heat Tabs |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 13V ~ 34V |
| Supplier Device Package | 36-HSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
