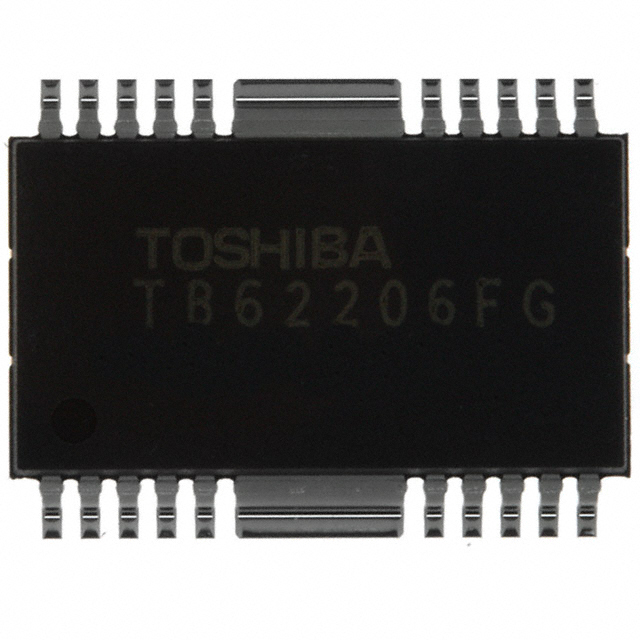

TB62206FG,EL
IC MTR DRV BIPLR 4.5-5.5V 20HSOPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TB62206FG-EL is a bipolar DMOS motor driver, featuring a fully integrated control and power stage. This device operates from a 4.5V to 5.5V supply voltage and is designed for bipolar stepper motors. The output stage provides 1.5A per channel with a load voltage range of 13V to 35V, configurable in four half-bridge outputs. The TB62206FG-EL supports step resolutions of full and half steps, driven via a parallel interface. Packaged in a 20-HSOP with two heat tabs, this surface-mount component is suitable for applications requiring precise motor control. Its operational temperature range is -40°C to 150°C (TJ). Typical industries utilizing this component include industrial automation and robotics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-BSOP (0.346"", 8.80mm Width) + 2 Heat Tabs |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Applications | General Purpose |
| Technology | DMOS |
| Voltage - Load | 13V ~ 35V |
| Supplier Device Package | 20-HSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | 1, 1/2 |
