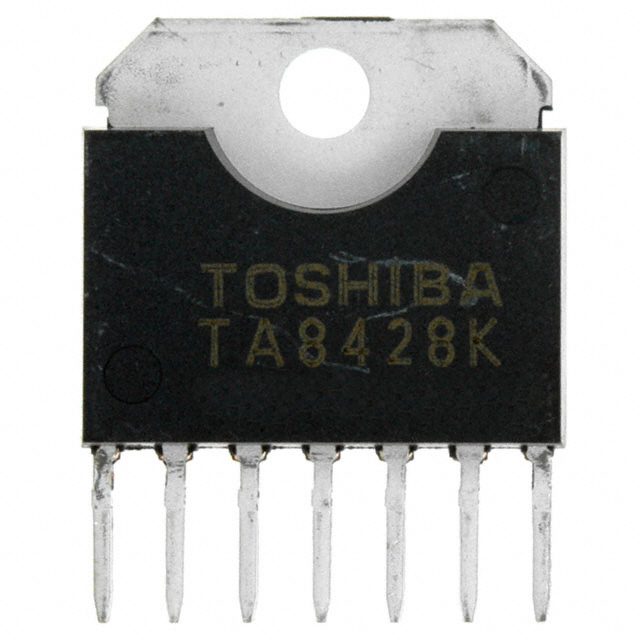

TA8428K(O,S)
IC MOTOR DRIVER 7V-27V 7HSIPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TA8428K-O-S is a bipolar motor driver designed for brushed DC applications. This device features a fully integrated control and power stage, providing a robust solution for demanding motor control needs. With a voltage range of 7V to 27V for both supply and load, it offers flexibility across various power configurations. The TA8428K-O-S delivers a continuous output current of 1.5A and is packaged in a 7-HSIP with an exposed tab for enhanced thermal management. Its parallel interface simplifies integration into existing designs. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems. The operating temperature range is -30°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tube |
| Package / Case | 7-SIP Exposed Tab |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 7V ~ 27V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 7V ~ 27V |
| Supplier Device Package | 7-HSIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
