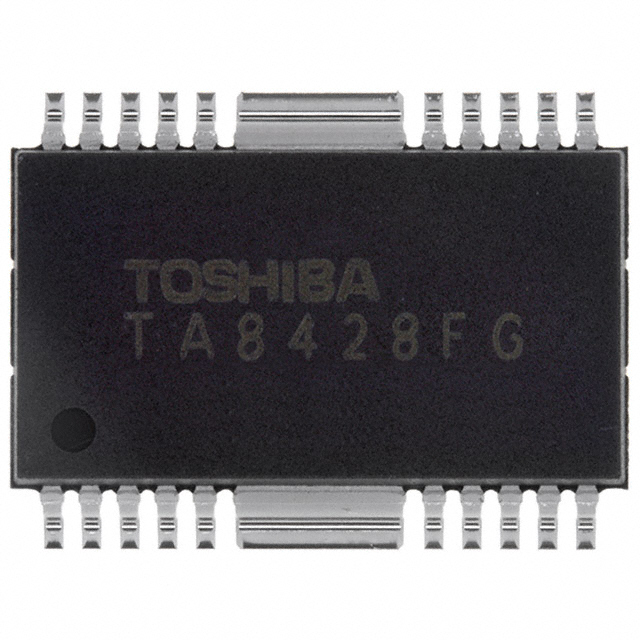

TA8428FG(O,EL)
IC MOTOR DRIVER 7V-27V 20HSOPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TA8428FG-O-EL- is a bipolar motor driver IC designed for brushed DC applications. This fully integrated component features both control and power stages, providing a robust solution for motor control. The device operates with a load and supply voltage range of 7V to 27V, and delivers an output current of 800mA. Its output configuration includes two half-bridge drivers. The TA8428FG-O-EL- is packaged in a 20-HSOP with two heat tabs, suitable for surface mounting. This component is utilized in general-purpose applications across various industries requiring precise motor control.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-BSOP (0.346"", 8.80mm Width) + 2 Heat Tabs |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 800mA |
| Interface | Parallel |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 7V ~ 27V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 7V ~ 27V |
| Supplier Device Package | 20-HSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
