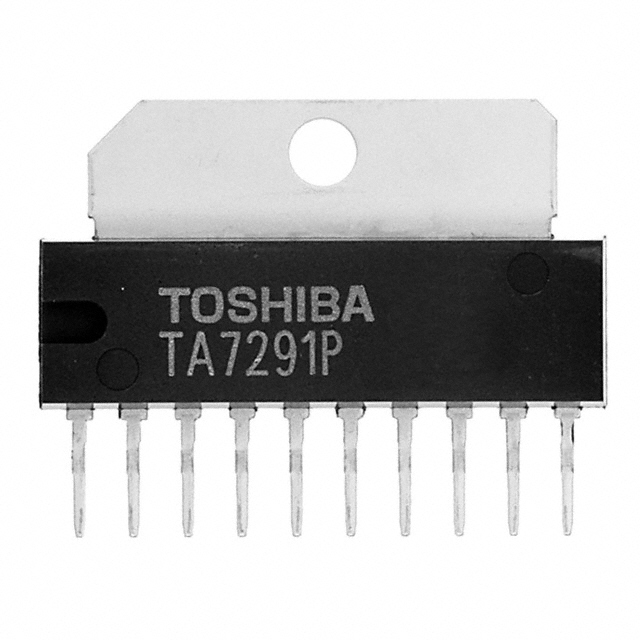

TA7291P(O)
IC MOTOR DRIVER 4.5V-20V 10HSIPManufacturer: Toshiba Semiconductor and Storage
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Toshiba Semiconductor and Storage TA7291P-O- is a bipolar motor driver IC designed for brushed DC applications. This fully integrated component combines control and power stage functions, offering a solution for motor drive requirements. It features a parallel interface and a half-bridge output configuration, supporting two outputs. The TA7291P-O- operates with a supply voltage range of 4.5V to 20V and a load voltage range of 0V to 20V, with a maximum output current of 1A. Packaged in a 10-HSIP with an exposed tab, this device is suitable for through-hole mounting. Its operating temperature range is -30°C to 75°C. This motor driver finds application in general-purpose use across various industries requiring precise brushed DC motor control.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SIP Exposed Tab |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1A |
| Interface | Parallel |
| Operating Temperature | -30°C ~ 75°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 20V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 0V ~ 20V |
| Supplier Device Package | 10-HSIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
