TMPM4G6FDFG(DBB)
IC MCU 32BIT 512KB FLASH 100LQFPManufacturer: Toshiba Semiconductor and Storage
Categories: Microcontrollers
Quality Control: Learn More
Toshiba Semiconductor and Storage TX04 Series microcontroller, part number TMPM4G6FDFG-DBB-. This 32-bit, single-core ARM Cortex-M4F processor operates at 160MHz, featuring 512KB of FLASH program memory and 128KB of RAM. Integrated peripherals include DMA, LVD, POR, and WDT. Connectivity options encompass CEC, EBI/EMI, I2C, IrDA, SIO, SPI, SMIF, and UART/USART. The device includes a 16-channel 12-bit Analog-to-Digital converter and a 2-channel 8-bit Digital-to-Analog converter. EEPROM size is 32KB. Supplied in a 100-LQFP (14x14) package for surface mounting, this component is suitable for applications in automotive and industrial automation. Operating temperature range is -40°C to 70°C.
Additional Information
Series: TX04RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LQFP |
| Mounting Type | Surface Mount |
| Speed | 160MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 128K x 8 |
| Operating Temperature | -40°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 32K x 8 |
| Core Processor | ARM® Cortex®-M4F |
| Data Converters | A/D 16x12b; D/A 2x8b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | CEC, EBI/EMI, I2C, IrDA, SIO, SPI, SMIF, UART/USART |
| Peripherals | DMA, LVD, POR, WDT |
| Supplier Device Package | 100-LQFP (14x14) |
| Number of I/O | 86 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

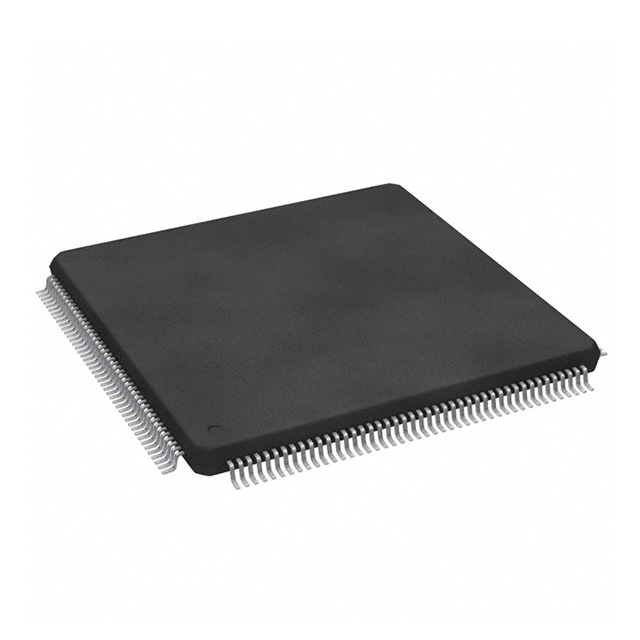

TMPM462F15FG(BDBB)
