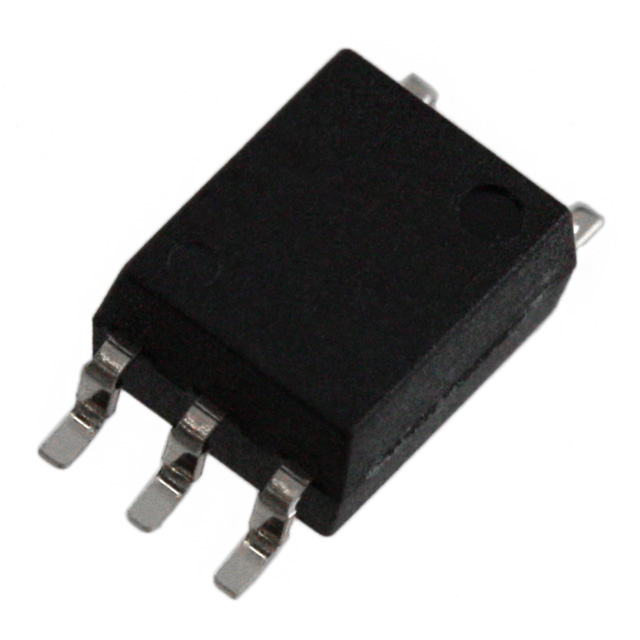

TLP2361(V4-TPL,E
OPTOISO 3.75KV PSH PULL SO6-5Manufacturer: Toshiba Semiconductor and Storage
Categories: Logic Output Optoisolators
Quality Control: Learn More
Logic Output Optoisolator 15MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 20kV/µs CMTI 6-SO, 5 Lead
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SOIC (0.179"", 4.55mm Width), 5 Leads |
| Output Type | Push-Pull, Totem Pole |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Data Rate | 15MBd |
| Input Type | DC |
| Voltage - Isolation | 3750Vrms |
| Current - DC Forward (If) (Max) | 10mA |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 6-SO, 5 Lead |
| Rise / Fall Time (Typ) | 3ns, 3ns |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 80ns, 80ns |
| Number of Channels | 1 |
| Current - Output / Channel | 10 mA |
