TCR3UG12A,LF
IC REG LINEAR 1.2V 300MA 4WCSP-FManufacturer: Toshiba Semiconductor and Storage
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

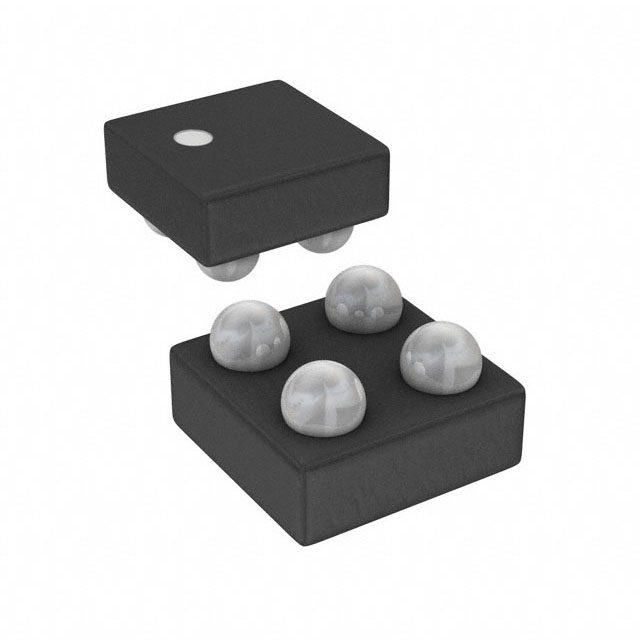

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 4-WCSP-F (0.65x0.65)
Additional Information
Series: TCR3UGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 580 nA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 4-WCSP-F (0.65x0.65) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 0.857V @ 300mA |
| Protection Features | Inrush Current, Over Current, Thermal Shutdown |
