TCR15AG30,LF
IC REG LINEAR 3V 1.5A 6WCSPManufacturer: Toshiba Semiconductor and Storage
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

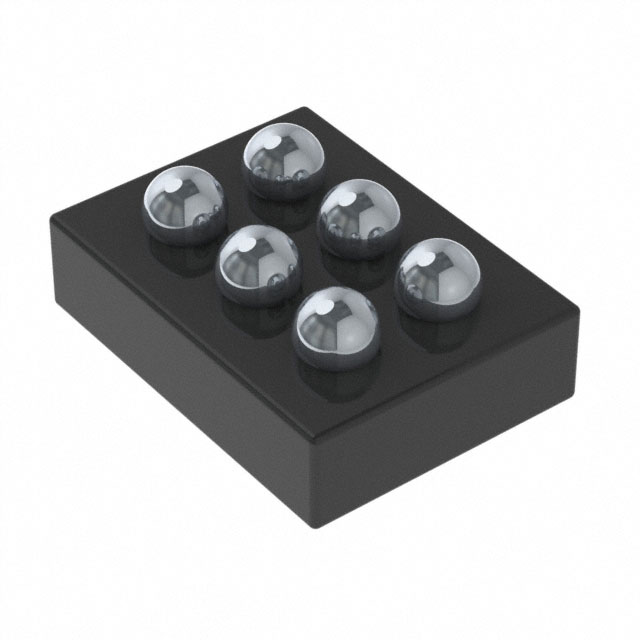

Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A 6-WCSP (1.2x0.80)
Additional Information
Series: TCR15AGRoHS Status: RoHS CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 40 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-WCSP (1.2x0.80) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | Enable |
| PSRR | 95dB ~ 60dB (1kHz) |
| Voltage Dropout (Max) | 0.648V @ 1.5A |
| Protection Features | Current Limit, Thermal Shutdown, UVLO |
