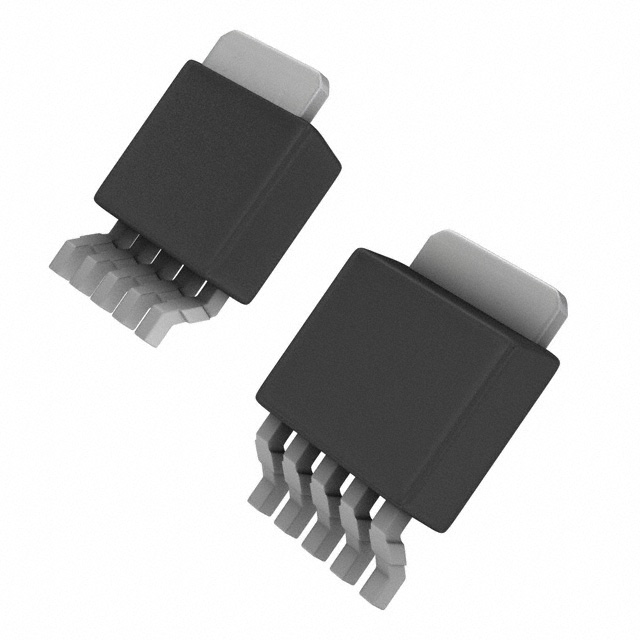

TA48S09AF(T6L1,Q)
IC REG LINEAR 9V 1A 5HSIPManufacturer: Toshiba Semiconductor and Storage
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Toshiba Semiconductor and Storage TA48S09AF-T6L1-Q is a positive fixed linear voltage regulator IC designed for efficient power management. This component delivers a stable 9V output at a maximum current of 1A, making it suitable for applications requiring precise voltage regulation. Featuring an output current capability of 1A and a quiescent current of 1.7mA, it offers a balance of performance and power efficiency. The device includes over-current and over-temperature protection features for enhanced reliability. With a maximum input voltage of 16V and a typical dropout voltage of 0.69V at 1A, it operates effectively within a wide temperature range of -40°C to 150°C. The TA48S09AF-T6L1-Q is supplied in a 5-HSIP package, suitable for surface mount applications. Its high power supply rejection ratio (PSRR) of 55dB at 120Hz contributes to low noise operation. This component finds application in various industrial and consumer electronics, including automotive systems and communications infrastructure.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.7 mA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | 5-HSIP |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 9V |
| Control Features | Enable |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 0.69V @ 1A (Typ) |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 20 mA |
