TL2FL-LL1,L
LED LETERAS WARM WHT 2700K 2SMDManufacturer: Toshiba Semiconductor and Storage
Categories: LED White Lighting
Quality Control: Learn More
Toshiba Semiconductor and Storage's TL2FL-LL1-L is a LETERAS™ series surface mount LED, offering warm white illumination at 2700K. This component is designed for applications requiring consistent color temperature and luminous flux. It operates with a typical forward voltage of 2.82V and a test current of 65mA, producing 21 lumens and a luminous efficacy of 115 lm/W. The LED features a Color Rendering Index (CRI) of 80 and is housed in a compact 1206 (3014 Metric) package, measuring 3.00mm x 1.40mm with a maximum seated height of 0.77mm. This device is supplied on a Tape & Reel (TR) for automated assembly. The TL2FL-LL1-L is suitable for general lighting, architectural lighting, and display backlighting applications.
Additional Information
Series: LETERAS™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3014 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.118"" L x 0.055"" W (3.00mm x 1.40mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.82V |
| Current - Test | 65mA |
| Viewing Angle | - |
| Current - Max | 100mA |
| Supplier Device Package | 3014 |
| Lumens/Watt @ Current - Test | 115 lm/W |
| Height - Seated (Max) | 0.030"" (0.77mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 21lm (19lm ~ 22lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

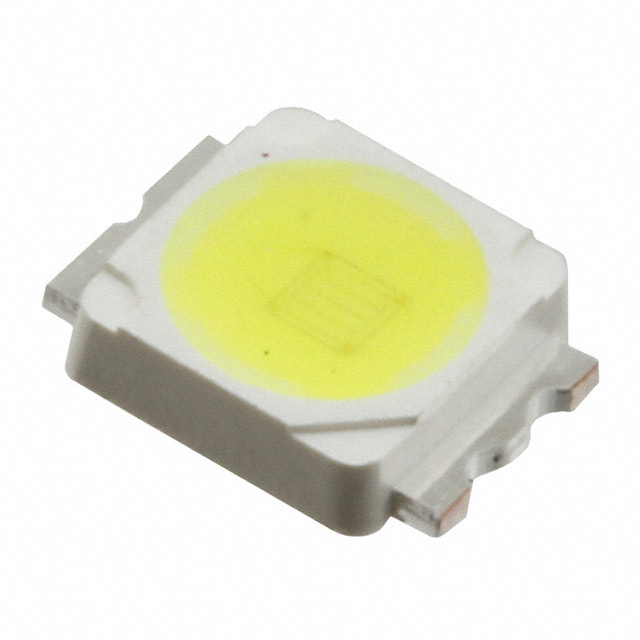

TL1F2-NW1,L
