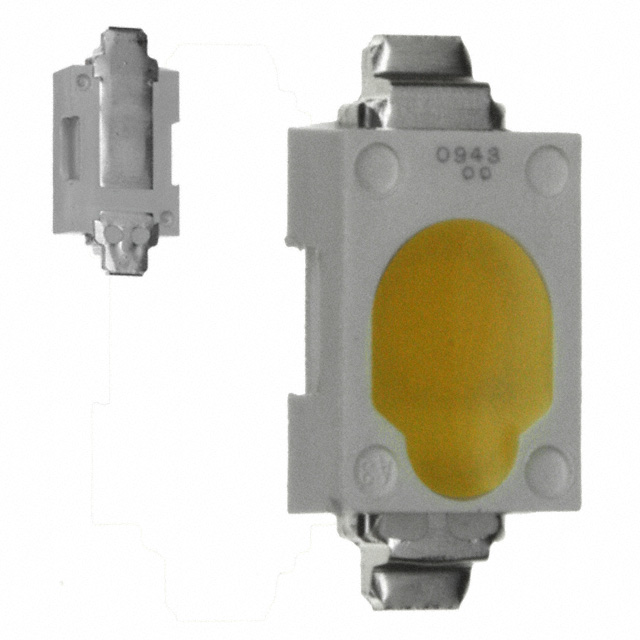

TL12W03-D(T30)
LED COOL WHITE 6500K 2SMDManufacturer: Toshiba Semiconductor and Storage
Categories: LED White Lighting
Quality Control: Learn More
Toshiba Semiconductor and Storage TL12W03-D-T30- is a surface-mount cool white LED with a Correlated Color Temperature (CCT) of 6500K (5650K ~ 8000K). This component is designed for high-brightness applications, operating at a typical forward voltage of 3.3V and a test current of 350mA, with a maximum current capability of 500mA. At the test current, it provides a luminous flux of 90 lumens, yielding 78 lumens per watt. The LED is housed in a 2-SMD, Flat Leads package with dimensions of 7.00mm x 5.00mm and a seated height of 2.25mm. It is supplied on a tape and reel for automated assembly. This LED is suitable for use in general lighting, automotive, and display applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | White, Cool |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 350mA |
| Viewing Angle | - |
| Current - Max | 500mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 78 lm/W |
| Height - Seated (Max) | 0.089"" (2.25mm) |
| CCT (K) | 6500K (5650K ~ 8000K) |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 90lm (67lm ~ 113lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy
TL1WK-NT1,L
LED LETERAS COOL WHT 5700K 2SMD
TL1WK-WH1,L
LED LETERAS NEU WHITE 4000K 2SMD

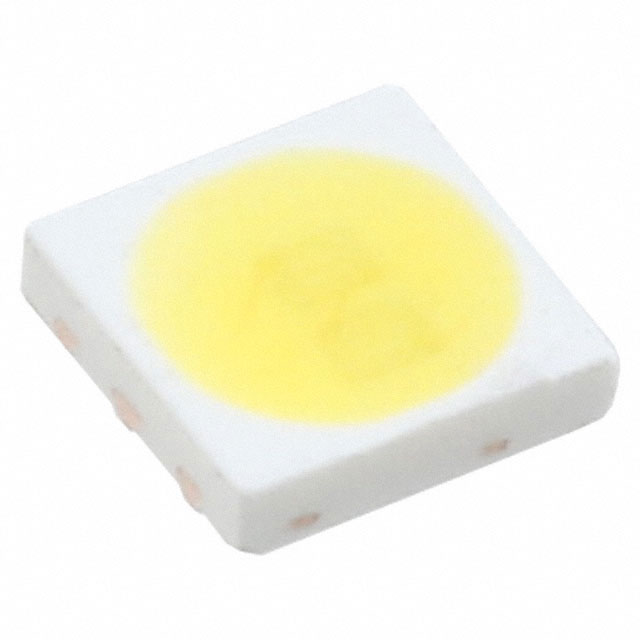

TL3GB-DW1,L
