TLBA1100B(T11)
LED BLUE SMDManufacturer: Toshiba Semiconductor and Storage
Categories: LED Indication - Discrete
Quality Control: Learn More
Toshiba Semiconductor and Storage TLBA1100B-T11- is a blue LED indication component. This Through-Hole device features a 465nm dominant wavelength and a 428nm peak wavelength, delivering 7mcd luminous intensity at a 10mA test current. The forward voltage is typically 3.7V. Encased in a 2-PLCC package with a 2.40mm diameter round with flat top lens, this component is designed for surface mounting. Its dimensions are 3.20mm L x 2.80mm W with a maximum height of 2.10mm. This LED is commonly utilized in consumer electronics, industrial automation, and automotive applications requiring discrete visual feedback. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Blue |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Lens Color | - |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 428nm |
| Wavelength - Dominant | 465nm |
| Supplier Device Package | SMD |
| Lens Transparency | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
Request a Quote
Clients Also Buy
TLBD1100B(T11)
LED BLUE SMD
TLWD1060(T18)
LED WHITE 2MINIPLCC SMD

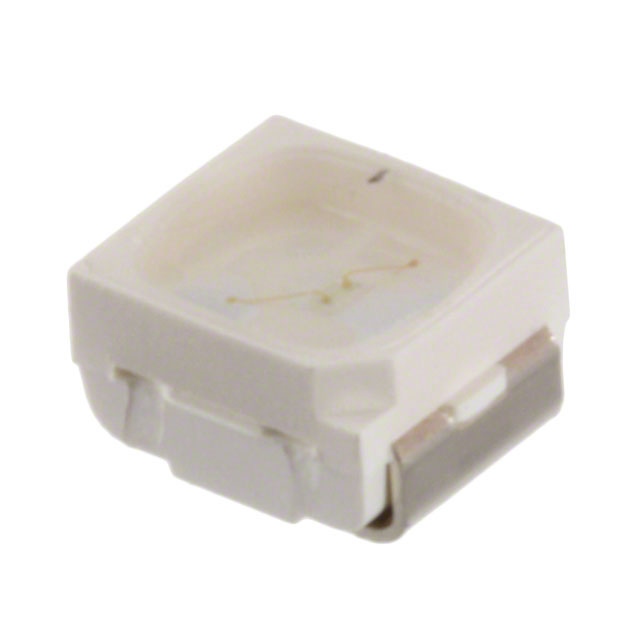

TLEGF1100C(T11(O
