TCA62723FMG,EL
IC LED DRIVER LINEAR 150MA 10SONManufacturer: Toshiba Semiconductor and Storage
Categories: LED Drivers
Quality Control: Learn More

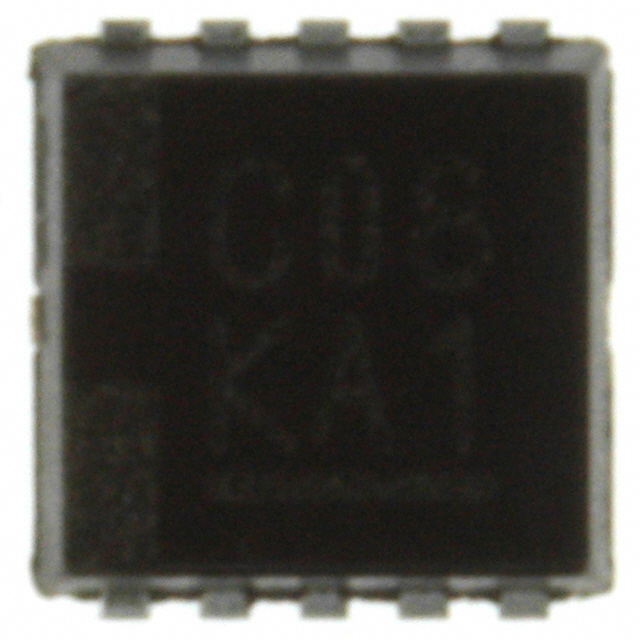

The Toshiba Semiconductor and Storage TCA62723FMG-EL is a 3-output linear LED driver IC featuring integrated switching capabilities. This device efficiently drives LEDs with a maximum output current of 150mA per channel. It operates from a supply voltage range of 2.7V to 5.5V, making it suitable for a variety of portable and consumer electronics applications. The TCA62723FMG-EL is packaged in a compact 10-SON (3x3) footprint, supporting surface mount installation. Its linear dimming functionality allows for precise control of LED brightness. This component is commonly found in display backlighting and general illumination within the consumer electronics and automotive sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 10-SMD, Flat Leads |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | - |
| Current - Output / Channel | 150mA |
| Internal Switch(s) | Yes |
| Topology | - |
| Supplier Device Package | 10-SON (3x3) |
| Dimming | - |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
