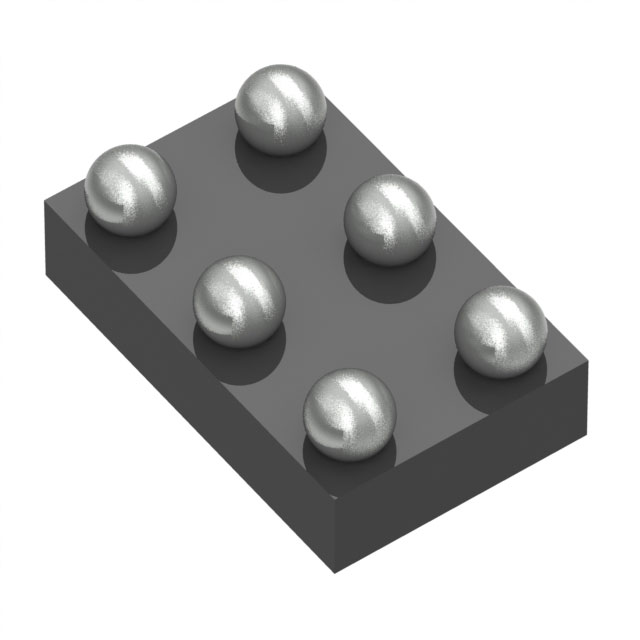

TCK420G,L3F
IC GATE DRVR HIGH-SIDE 6WCSPGManufacturer: Toshiba Semiconductor and Storage
Categories: Gate Drivers
Quality Control: Learn More
High-Side Gate Driver IC Non-Inverting 6-WCSPG (0.8x1.2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 28V |
| Input Type | Non-Inverting |
| Supplier Device Package | 6-WCSPG (0.8x1.2) |
| Rise / Fall Time (Typ) | - |
| Channel Type | Single |
| Driven Configuration | High-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.4V, 1.2V |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
