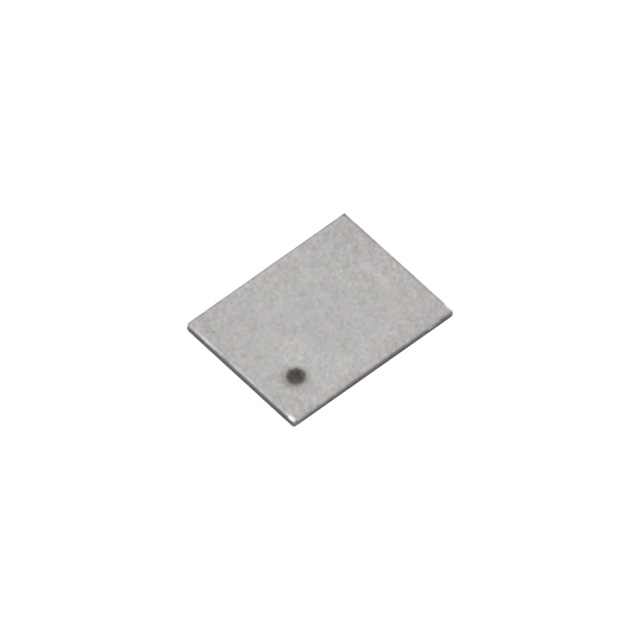

SSM6N813R,LF
MOSFET 2N-CH 100V 3.5A 6TSOPFManufacturer: Toshiba Semiconductor and Storage
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V 3.5A (Ta) 1.5W (Ta) Surface Mount 6-TSOP-F
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.5W (Ta) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 242pF @ 15V |
| Rds On (Max) @ Id, Vgs | 112mOhm @ 3.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 3.6nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 100µA |
| Supplier Device Package | 6-TSOP-F |
| Grade | Automotive |
| Qualification | AEC-Q101 |
