TB7102F(TE85L,F)
IC REG BUCK ADJ 1A PS-8Manufacturer: Toshiba Semiconductor and Storage
Categories: DC DC Switching Regulators
Quality Control: Learn More
Toshiba Semiconductor and Storage TB7102F-TE85L-F- is a synchronous buck switching regulator designed for efficient power conversion. This adjustable positive output device delivers up to 1A of current with an output voltage range of 0.8V to 4.5V, operating from an input voltage of 2.7V to 5.5V. Featuring a compact PS-8 (2.9x2.4) surface-mount package, it operates at a switching frequency of 1MHz, enabling the use of smaller external components. The TB7102F-TE85L-F- is suitable for applications in consumer electronics, industrial automation, and battery-powered devices. Its efficient buck topology and integrated synchronous rectifier contribute to high power conversion efficiency across its operating temperature range of -40°C to 125°C. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Leads |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | PS-8 (2.9x2.4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 4.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.8V |
Request a Quote
Clients Also Buy
TCV7102F(TE12L,Q)
IC REG BUCK ADJ 3A 8SOP-ADV
TCV7106FN(TE85L,F)
IC REG BUCK ADJ 2A PS-8

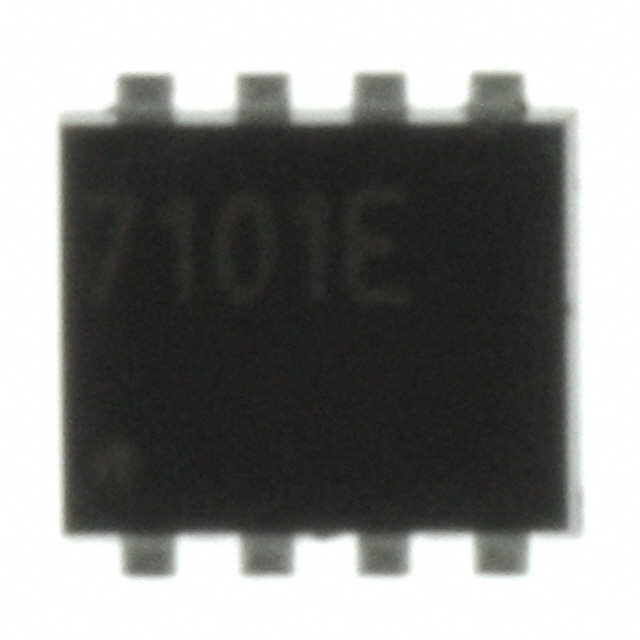

TB7101F(T5L3.3,F)
