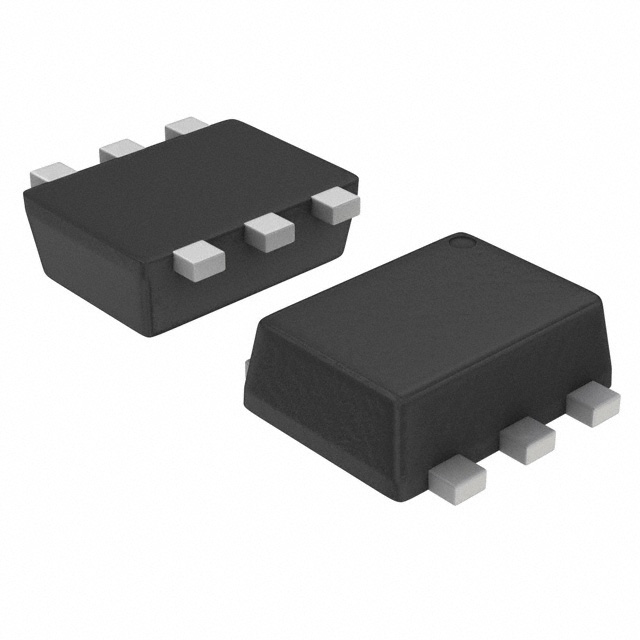

RN2905FE,LF(CT
TRANS 2PNP PREBIAS 0.1W ES6Manufacturer: Toshiba Semiconductor and Storage
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More
Toshiba Semiconductor and Storage RN2905FE-LF-CT is a dual PNP pre-biased bipolar junction transistor (BJT) designed for surface mount applications. This ES6 packaged component features a collector-emitter breakdown voltage of 50V and a maximum collector current of 100mA. With a transition frequency of 200MHz and a maximum power dissipation of 100mW, it offers a minimum DC current gain (hFE) of 80 at 10mA and 5V. The integrated base resistors include R1 at 2.2kOhms and R2 at 47kOhms, simplifying external biasing. Saturation voltage at 250µA base and 5mA collector current is 300mV. Applications include general-purpose amplification and switching circuits in consumer electronics and industrial control systems. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 PNP - Pre-Biased (Dual) |
| Power - Max | 100mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 10mA, 5V |
| Frequency - Transition | 200MHz |
| Resistor - Base (R1) | 2.2kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Supplier Device Package | ES6 |
