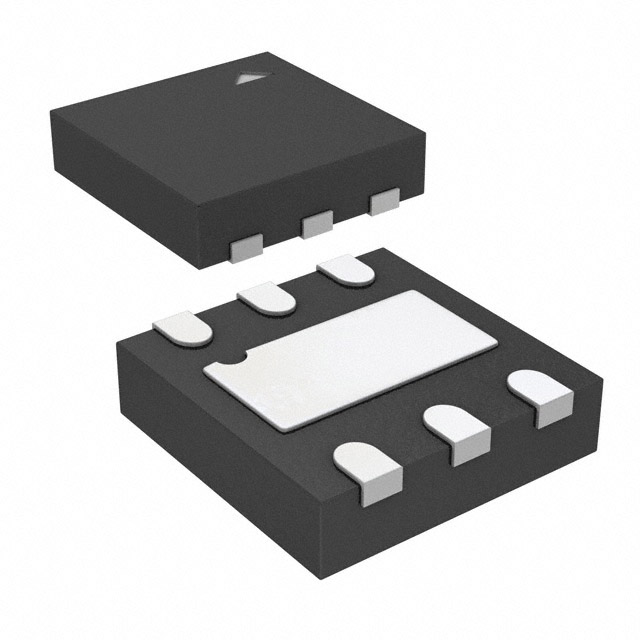

XC3202B183ZR-G
MAGNETIC SWITCH OMNIPOLAR 6QFNManufacturer: Torex Semiconductor Ltd
Categories: Switches (Solid State)
Quality Control: Learn More
The Torex Semiconductor Ltd XC3202B183ZR-G is an omnipolar Hall effect switch designed for high-sensitivity magnetic field detection. This digital switch features a push-pull output and operates over a wide supply voltage range of 2.4V to 5.5V, with a remarkably low supply current of just 16µA. The component is housed in a compact 6-UQFN Exposed Pad package (6-QFN-0601 2x2mm), suitable for surface mounting. Its omnipolar nature allows detection of both north and south magnetic poles with a typical trip magnetic flux density of ±4mT and a release point of 0mT. This device is engineered for applications requiring precise and efficient magnetic sensing, commonly found in consumer electronics, industrial automation, and automotive systems. The XC3202B series offers reliable performance across an operating temperature range of -40°C to 85°C.
Additional Information
Series: XC3202BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UQFN Exposed Pad |
| Output Type | Push-Pull |
| Polarization | North Pole, South Pole |
| Mounting Type | Surface Mount |
| Function | Omnipolar Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.4V ~ 5.5V |
| Technology | Hall Effect |
| Sensing Range | ±4mT Trip, 0mT Release |
| Current - Output (Max) | 40mA |
| Current - Supply (Max) | 16µA |
| Supplier Device Package | 6-QFN-0601 (2x2) |
| Test Condition | 25°C |
