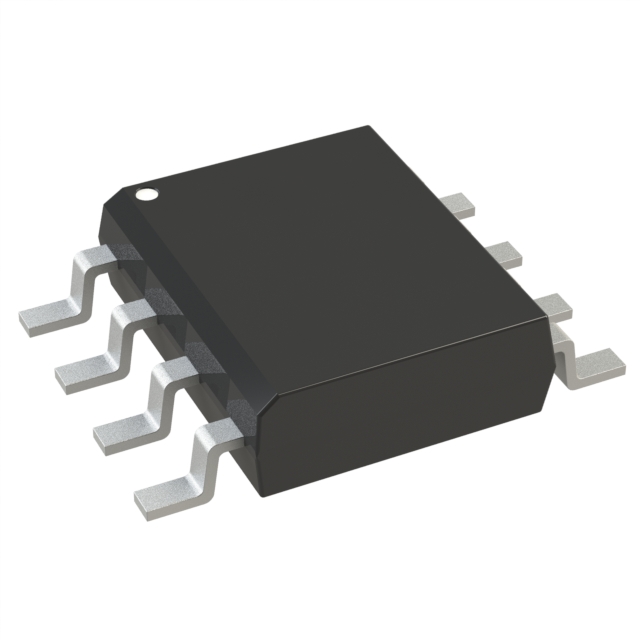

XC6230A001QR-G
MULTIFUNCTION 2A HIGH SPEED LDOManufacturer: Torex Semiconductor Ltd
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 2A SOP-8FD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 83 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | SOP-8FD |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Current Limit, Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 0.52V @ 2A |
| Protection Features | Over Current, Over Temperature, Reverse Current |
