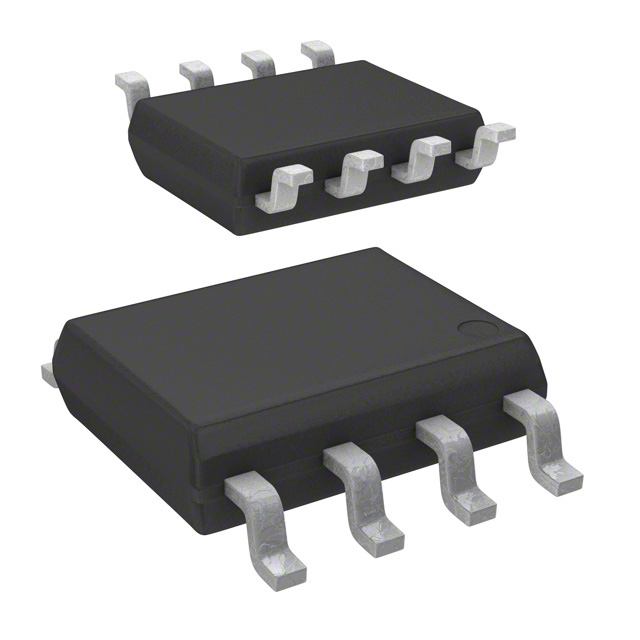

XC6220A19BQR-G
IC REG LINEAR 1.95V 1A 8SOPFDManufacturer: Torex Semiconductor Ltd
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Torex Semiconductor Ltd XC6220A19BQR-G is a positive fixed output linear voltage regulator IC designed for high-performance applications. This component delivers a stable 1.95V output with a maximum output current capability of 1A. Featuring an exceptionally low quiescent current of 18 µA and a supply current of 108 µA (Max), it is ideal for power-sensitive designs. The device offers robust protection mechanisms including over current and over temperature shutdown. Its dropout voltage is rated at 0.655V at 1A, ensuring efficient operation. The XC6220A19BQR-G is supplied in an 8-SOPFD package, suitable for surface mounting, and operates within a temperature range of -40°C to 85°C. This regulator is commonly utilized in industrial equipment, portable electronics, and automotive systems where reliable power delivery is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 18 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-SOPFD |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.95V |
| Control Features | Enable |
| PSRR | 50dB (1kHz) |
| Voltage Dropout (Max) | 0.655V @ 1A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 108 µA |
