XC6806A44011-G
IC BATT CHG LI-ION 1CELL 10LGAManufacturer: Torex Semiconductor Ltd
Categories: Battery Chargers
Quality Control: Learn More

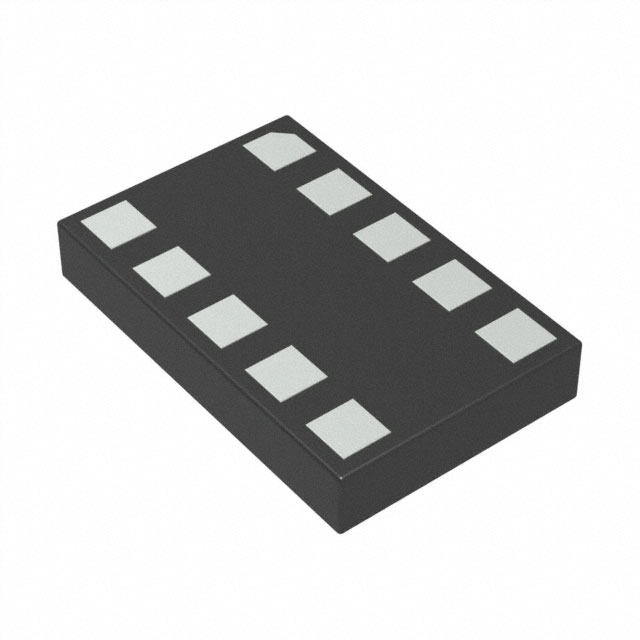

The Torex Semiconductor Ltd XC6806A44011-G is a single-cell Lithium Ion/Polymer battery charger IC from the XC680x series. This component is housed in a compact 10-LGA-B01 (2.5x1.6) package, designed for surface mount applications. It supports a maximum input voltage of 5.5V and features a programmable constant charge current up to 385mA, targeting a battery pack voltage of 4.4V. Integrated fault protection includes over-current, over-temperature, and reverse current detection. The interface is USB, facilitating straightforward power management. This device is suitable for applications in portable electronics and battery-powered devices where efficient and reliable Li-ion charging is critical. The XC6806A44011-G is supplied on tape and reel.
Additional Information
Series: XC680xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-XFLGA |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 10-LGA-B01 (2.5x1.6) |
| Charge Current - Max | 385mA |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Reverse Current |
| Voltage - Supply (Max) | 5.5V |
| Battery Pack Voltage | 4.4V |
| Current - Charging | Constant - Programmable |
