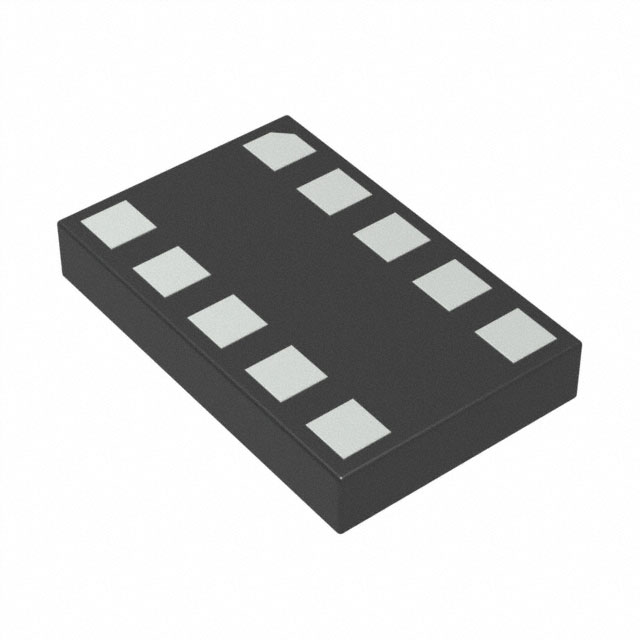

XC6806A42011-G
IC BATT CHG LI-ION 1CELL 10LGAManufacturer: Torex Semiconductor Ltd
Categories: Battery Chargers
Quality Control: Learn More
Torex Semiconductor Ltd. XC680x series XC6806A42011-G is a single-cell lithium-ion/polymer battery charger IC. This highly integrated component features a constant-current, constant-voltage charging method with a maximum charge current of 385mA, making it suitable for applications requiring efficient and reliable power management. The device supports USB interface and offers programmable charge current functionality. It incorporates robust fault protection mechanisms, including over-current, over-temperature, and reverse-current protection, ensuring system safety. The XC6806A42011-G is housed in a compact 10-LGA-B01 (2.5x1.6) surface-mount package, ideal for space-constrained designs. Operating across a wide temperature range of -40°C to 85°C, this component finds application in portable electronics, wireless devices, and other battery-powered systems.
Additional Information
Series: XC680xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-XFLGA |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 10-LGA-B01 (2.5x1.6) |
| Charge Current - Max | 385mA |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Reverse Current |
| Voltage - Supply (Max) | 5.5V |
| Battery Pack Voltage | 4.2V |
| Current - Charging | Constant - Programmable |
