99223
LED ENG WM WH STARBOARD 2700KManufacturer: Thomas Research Products
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

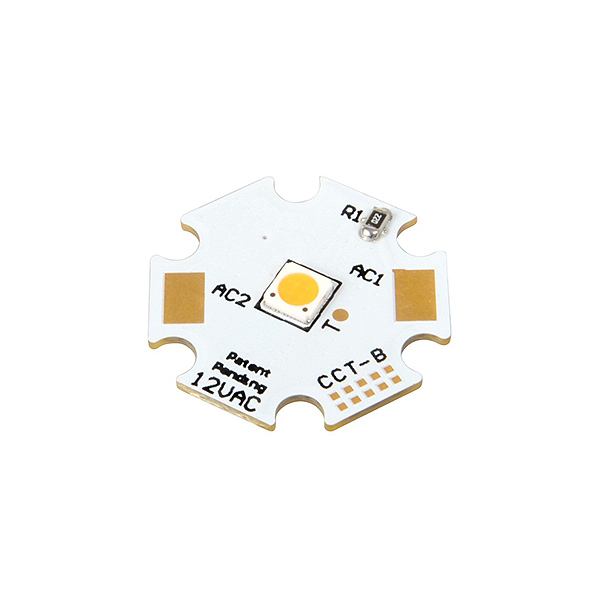

Thomas Research Products 99223 is a warm white LED Engine featuring a 2700K color temperature and a starboard configuration. This COB-style module operates with a typical forward voltage of 12VAC and a test current of 50mA, delivering 31 lumens at 52 lumens per watt. The compact design measures 9.90mm in diameter with a low profile of 1.61mm. Its 120° viewing angle and flat lens make it suitable for general illumination and architectural lighting applications. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 9.90mm Dia |
| Type | LED Engine |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 12VAC |
| Height | 1.61mm |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 75mA |
| Lumens/Watt @ Current - Test | 52 lm/W |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 31lm (Typ) |
