99051
LED ENG WARM WHT ROUND 3000KManufacturer: Thomas Research Products
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

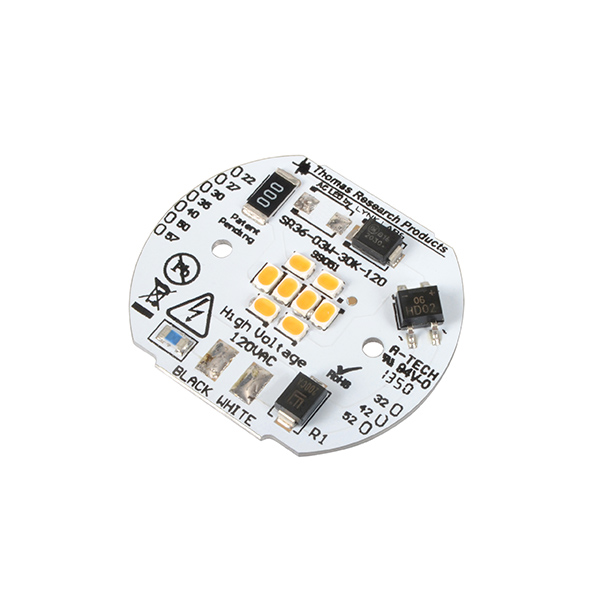

Thomas Research Products 99051 is a warm white LED engine module, delivering 214 lumens typical at 25mA test current and 120VAC forward voltage. This round component operates at a 3000K correlated color temperature, providing 71 lumens per watt efficiency. With a 120° viewing angle and a 3.70mm height, its 18.00mm diameter is suitable for various general illumination applications. This LED engine is commonly utilized in residential and commercial lighting solutions.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 18.00mm Dia |
| Type | LED Engine |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 120VAC |
| Height | 3.70mm |
| Current - Test | 25mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 30mA |
| Lumens/Watt @ Current - Test | 71 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 214lm (Typ) |
