99013
LED ENG WM WHT LNR STRP 3000KManufacturer: Thomas Research Products
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

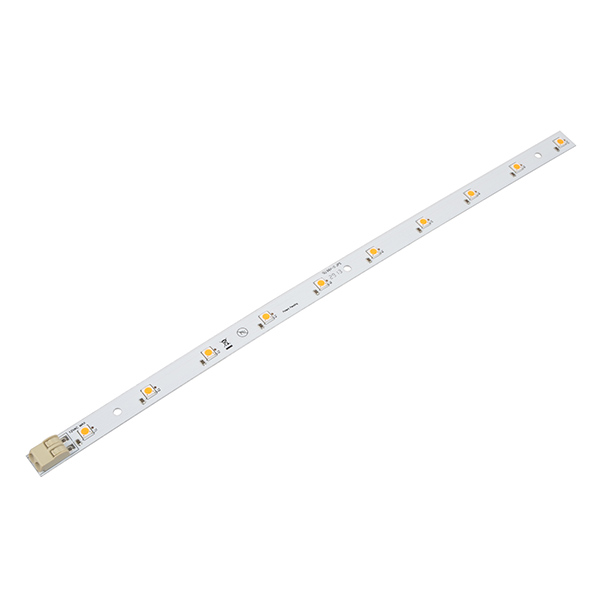

Thomas Research Products 99013 is a linear LED engine designed for demanding lighting applications. This Warm White module operates at 3000K with a typical forward voltage of 12VAC and a maximum current of 1.3A. Delivering 726 lumens (Typ) at a test current of 833mA, it achieves an efficiency of 73 lm/W. The module features a connector for simplified integration and a 120° viewing angle. Its dimensions are 254.00mm L x 10.00mm W with a height of 5.50mm. This component is suitable for use in general lighting, architectural lighting, and task lighting systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Bulk |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 254.00mm L x 10.00mm W |
| Type | LED Engine |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 12VAC |
| Height | 5.50mm |
| Current - Test | 833mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.3A |
| Lumens/Watt @ Current - Test | 73 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 726lm (Typ) |
