98021
LED MOD RND WM WHT RND 2700KManufacturer: Thomas Research Products
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

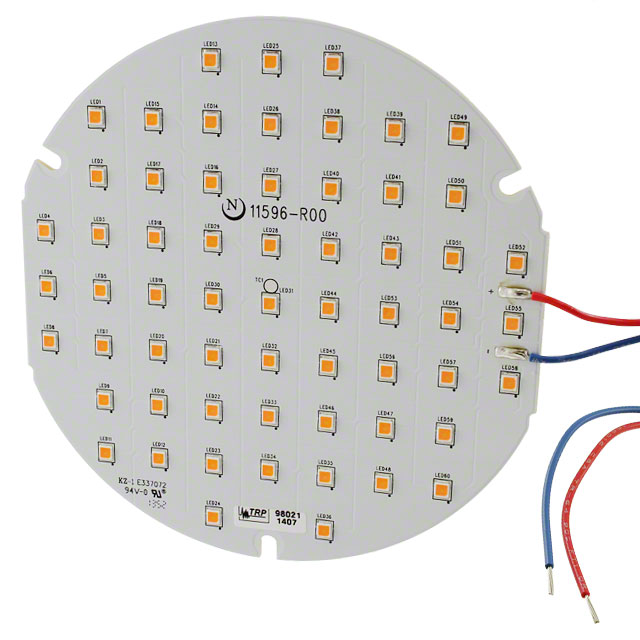

Thomas Research Products 98021 is a Round series LED Module available in Warm White. This module operates at a test current of 450mA and a forward voltage of 35.9V (typical), delivering 1970 lumens at 25°C. It achieves an efficacy of 122 lumens per watt at the test conditions and features a Color Rendering Index (CRI) of 83. The module has a diameter of 119.38mm and a height of 2.08mm, with a flat lens type and a 120° viewing angle. The correlated color temperature (CCT) is 2700K. This component is suitable for various lighting applications, including architectural lighting and general illumination.
Additional Information
Series: RoundRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 119.38mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 35.9V |
| Height | 2.08mm |
| Current - Test | 450mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 122 lm/W |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 83 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1970lm (Typ) |
Request a Quote
Clients Also Buy

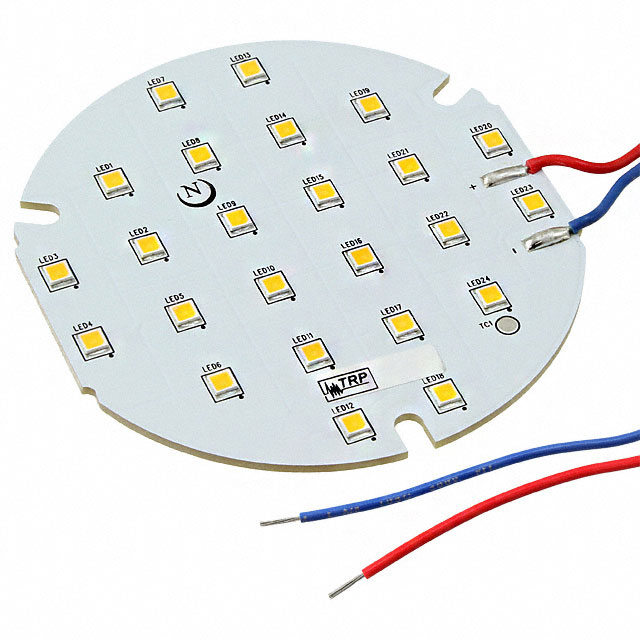

98015
LED MOD RND WM WHT RND 3500K
98016
LED MOD RND NEUT WHT RND 4000K

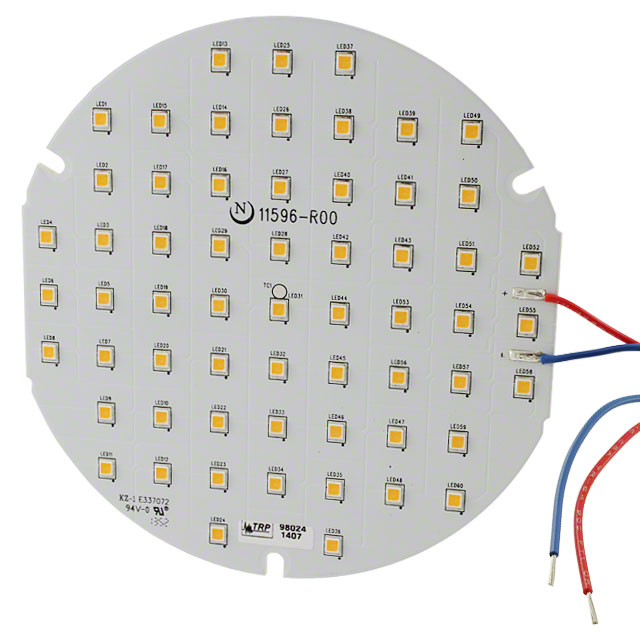

98024
