98009
LED MOD CANOPY CL WH RECT 5000KManufacturer: Thomas Research Products
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

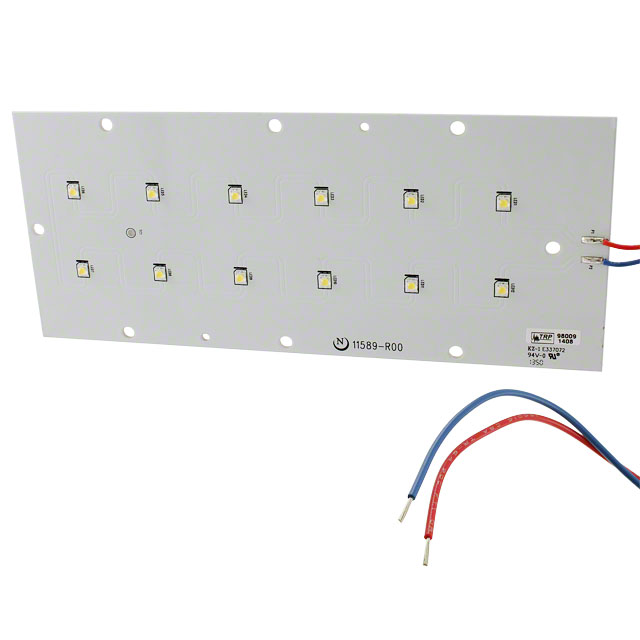

Thomas Research Products Canopy Series LED Module, part number 98009, is a cool white rectangular lighting engine designed for high-efficacy illumination. This module operates at a typical forward voltage of 37V and a test current of 700mA, delivering 3420 lumens luminous flux with a typical efficacy of 132 lm/W at 25°C. Featuring a 120° viewing angle and a color temperature of 5000K, it offers a typical CRI of 70. The module measures 81.28mm in length by 177.80mm in width with a height of 3.56mm, utilizing a flat lens. This component is suitable for demanding applications in the industrial and commercial lighting sectors, particularly for canopy lighting.
Additional Information
Series: CanopyRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 81.28mm L x 177.80mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 37V |
| Height | 3.56mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 132 lm/W |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 70 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 3420lm (Typ) |
Request a Quote
