98004
LED MOD TROFFER LNR 3500K 23Manufacturer: Thomas Research Products
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

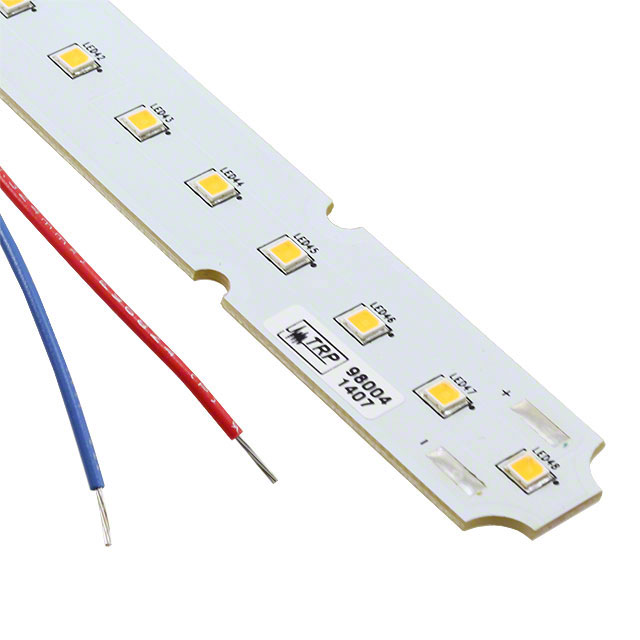

Thomas Research Products LED Module, Troffer series, part number 98004. This linear light strip offers a 3500K correlated color temperature with a typical CRI of 83. Designed for demanding lighting applications, this module operates at 700mA test current, delivering a typical luminous flux of 893 lumens and 71 lm/W efficacy at 25°C. The module features a 120° viewing angle and a flat lens. Its dimensions are 582.93mm in length and 18.80mm in width, with a height of 2.08mm. This component is suitable for use in commercial and industrial lighting systems.
Additional Information
Series: TrofferRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 582.93mm L x 18.80mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 17.9V |
| Height | 2.08mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 71 lm/W |
| CCT (K) | 3500K |
| CRI (Color Rendering Index) | 83 (Typ) |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 893lm (Typ) |
Request a Quote
Clients Also Buy

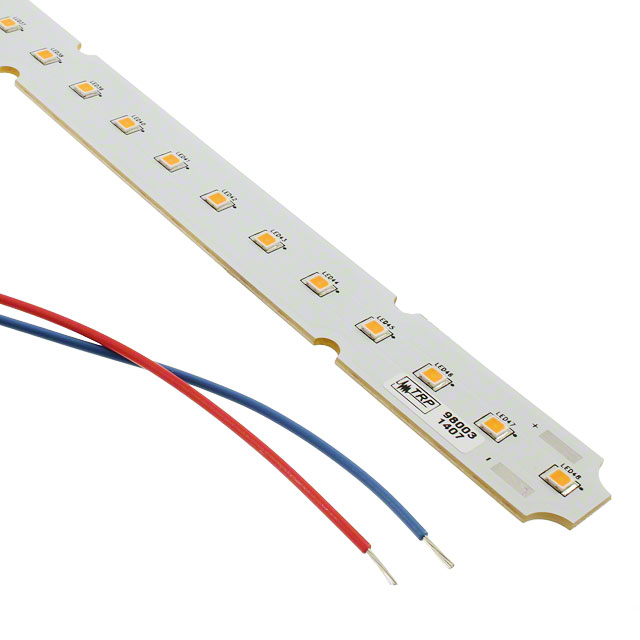

98003
LED MOD TROFFER LNR STRP 3000K

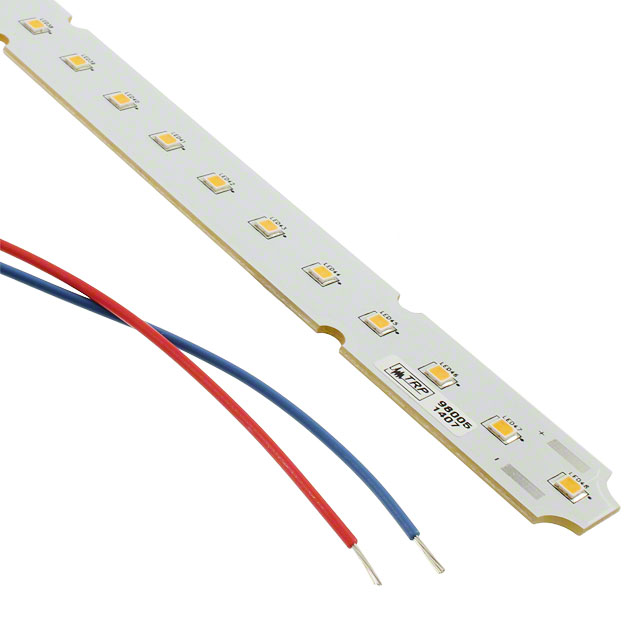

98005
