REF3312AIDCKRG4
IC VREF SERIES 0.15% SC70-3Manufacturer: Texas Instruments
Categories: Voltage Reference
Quality Control: Learn More
Texas Instruments REF3312AIDCKRG4, a fixed voltage reference IC, offers a precise 1.25V output with a ±0.15% tolerance. This Series voltage reference is designed for applications requiring high stability and accuracy, with a low operating current of 8.5µA and a maximum output current of 30 mA. The temperature coefficient is rated at 30ppm/°C, and it operates across an industrial temperature range of -40°C to 125°C. The SC-70-3 package facilitates surface mounting, making it suitable for compact designs in medical devices, industrial automation, and portable electronics. Input voltage range is 1.7V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.15% |
| Packaging | Tape & Reel (TR) |

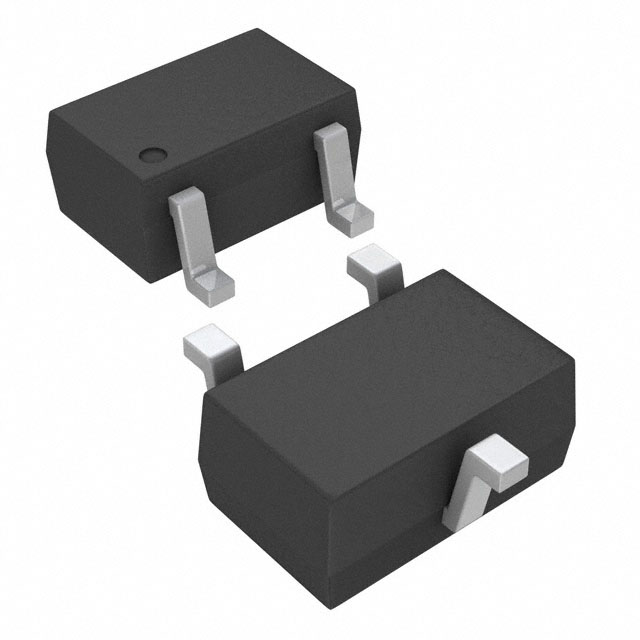

| Package / Case | SC-70, SOT-323 |
| Temperature Coefficient | 30ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.7V ~ 5.5V |
| Reference Type | Series |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | 8.5µA |
| Supplier Device Package | SC-70-3 |
| Voltage - Output (Min/Fixed) | 1.25V |
| Noise - 0.1Hz to 10Hz | 35µVp-p |
| Noise - 10Hz to 10kHz | - |
| Current - Output | 30 mA |
