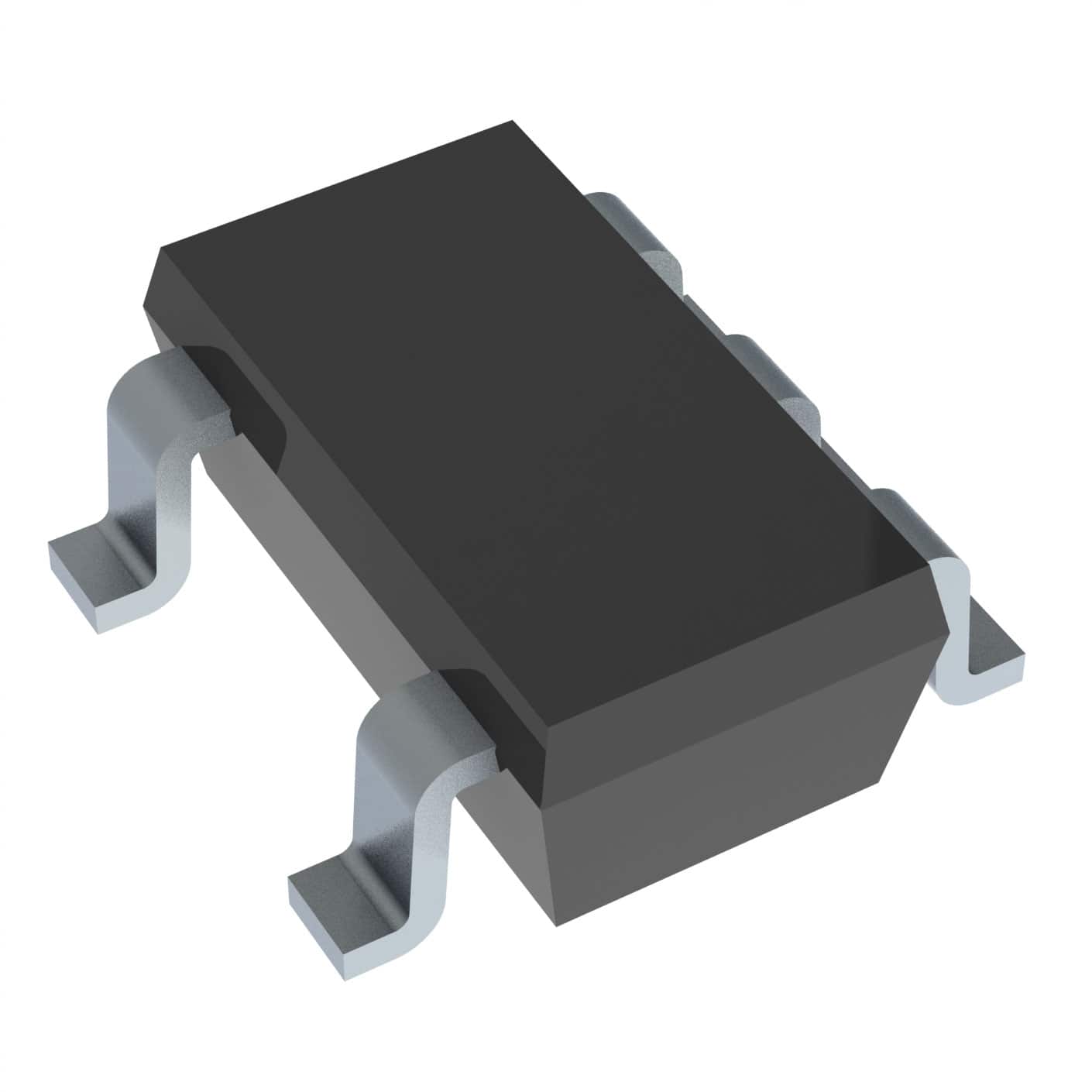

LM4120AIM5-3.0
IC VREF SERIES 0.2% SOT23-5Manufacturer: Texas Instruments
Categories: Voltage Reference
Quality Control: Learn More
The Texas Instruments LM4120AIM5-3-0 is a fixed 3V series voltage reference with a ±0.2% initial accuracy. This component is designed for applications demanding precise voltage regulation, offering a stable output with a temperature coefficient of 50ppm/°C. It operates over an input voltage range of 2V to 12V and provides a regulated output current of up to 5 mA. The device exhibits low noise, with 20µVp-p from 0.1Hz to 10Hz and 36µVp-p from 10Hz to 10kHz. The LM4120AIM5-3-0 is supplied in a SOT-23-5 package, suitable for surface mounting. Typical applications for this voltage reference include industrial control systems, test and measurement equipment, and power supply modules. The supply current is rated at 275µA, and it operates within an ambient temperature range of -40°C to 85°C. The packaging is Tape & Reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.2% |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Temperature Coefficient | 50ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | 2V ~ 12V |
| Reference Type | Series |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 275µA |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Min/Fixed) | 3V |
| Noise - 0.1Hz to 10Hz | 20µVp-p |
| Noise - 10Hz to 10kHz | 36µVp-p |
| Current - Output | 5 mA |
