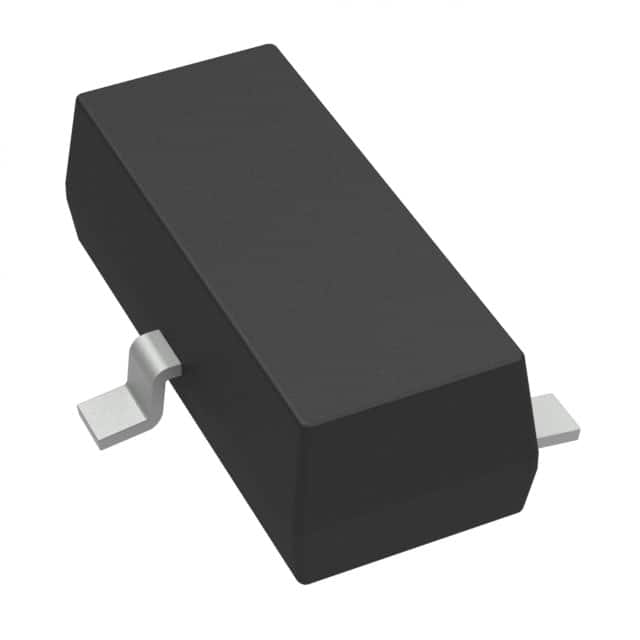

LM4051AIM3-ADJ
IC VREF SHUNT ADJ 0.1% SOT23-3Manufacturer: Texas Instruments
Categories: Voltage Reference
Quality Control: Learn More
Texas Instruments LM4051AIM3-ADJ is an adjustable shunt voltage reference with a ±0.1% initial tolerance. This device offers a precise output voltage range from 1.212V up to 10V, capable of sourcing up to 12mA of cathode current. Designed for robust performance, it exhibits a temperature coefficient of 50ppm/°C and low output noise of 20µVrms from 10Hz to 10kHz. Operating from a minimum cathode current of 65µA, the LM4051AIM3-ADJ is suitable for applications requiring stable voltage references in demanding environments. It is available in a compact SOT-23-3 surface-mount package, commonly utilized in industrial and automotive applications where precise voltage regulation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.1% |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | 50ppm/°C |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | - |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Min/Fixed) | 1.212V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 20µVrms |
| Current - Cathode | 65 µA |
| Current - Output | 12 mA |
| Voltage - Output (Max) | 10 V |
