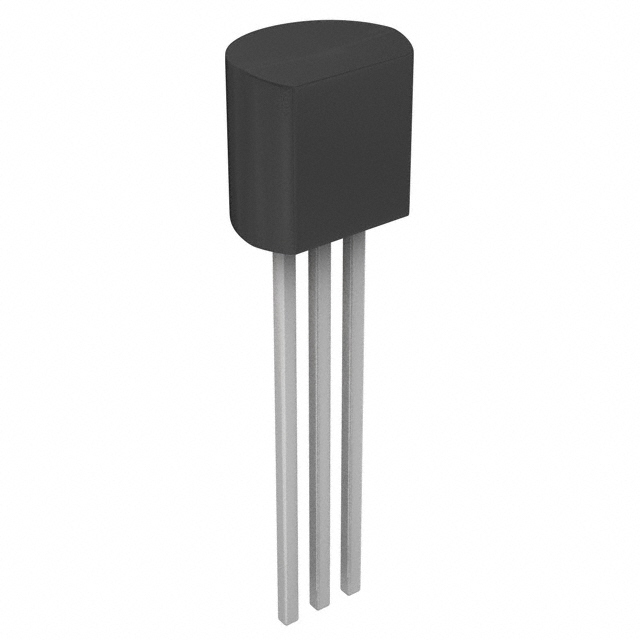

LM4040DIZ-10.0/NOPB
IC VREF SHUNT 1% TO92-3Manufacturer: Texas Instruments
Categories: Voltage Reference
Quality Control: Learn More
Texas Instruments LM4040DIZ-10-0-NOPB is a shunt voltage reference IC offering a fixed 10V output with a ±1% tolerance. This component is designed for applications requiring stable voltage references, including industrial control systems, power supplies, and battery-powered devices. It operates with a cathode current of 110 µA and can source an output current up to 15 mA. The temperature coefficient is specified at 150ppm/°C, and it maintains operation across an ambient temperature range of -40°C to 85°C. The LM4040DIZ-10-0-NOPB is supplied in a TO-92-3 package, suitable for through-hole mounting. Noise performance is rated at 180µVrms from 10Hz to 10kHz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±1% |
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Temperature Coefficient | 150ppm/°C |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | - |
| Supplier Device Package | TO-92-3 |
| Voltage - Output (Min/Fixed) | 10V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 180µVrms |
| Current - Cathode | 110 µA |
| Current - Output | 15 mA |
