LM4040DIM3X-10
IC VREF SHUNT 1% SOT23-3Manufacturer: Texas Instruments
Categories: Voltage Reference
Quality Control: Learn More
Texas Instruments LM4040DIM3X-10 is a fixed 10V shunt voltage reference with a ±1% initial tolerance. This SOT-23-3 packaged component is suitable for applications requiring precise voltage regulation. The device operates with a cathode current range from 110 µA up to a maximum output current of 15 mA. Its temperature coefficient is rated at 150ppm/°C, and it exhibits 180µVrms noise from 10Hz to 10kHz. The operating temperature range is -40°C to 85°C (TA). This component is commonly found in industrial and automotive applications where stable voltage references are critical. The LM4040DIM3X-10 is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±1% |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | 150ppm/°C |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | - |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Min/Fixed) | 10V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 180µVrms |
| Current - Cathode | 110 µA |
| Current - Output | 15 mA |
Request a Quote
Clients Also Buy

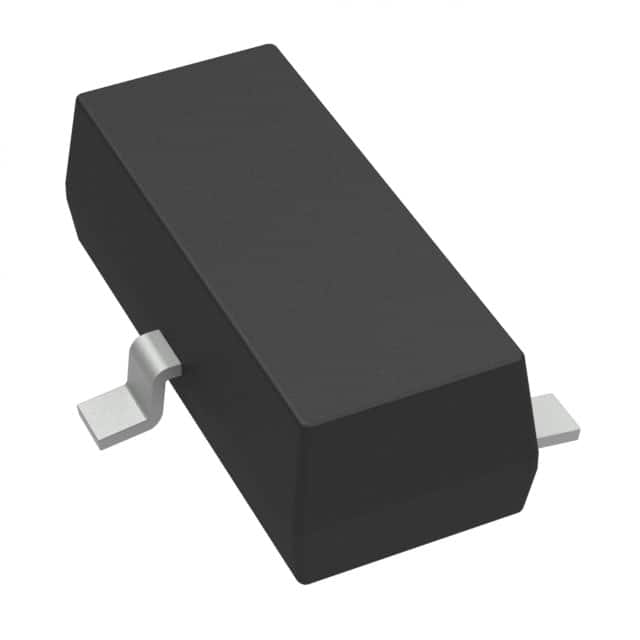

ATL432EAQDBZR
