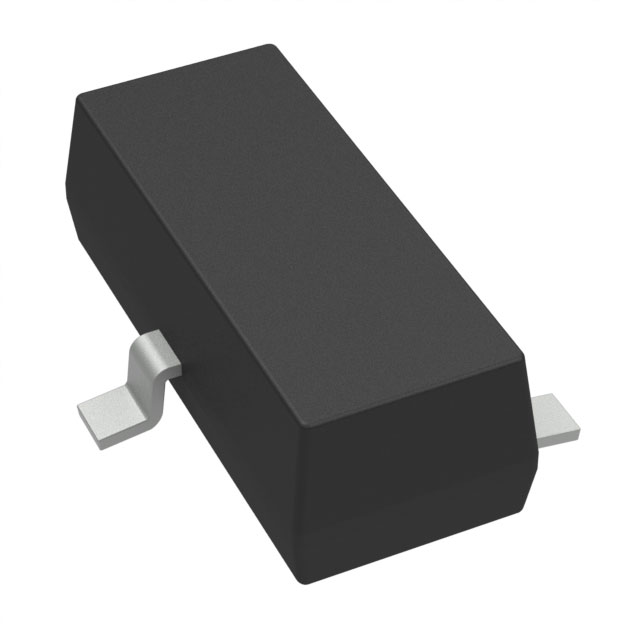

ATL431BQDBZR
IC VREF SHUNT ADJ 0.5% SOT23-3Manufacturer: Texas Instruments
Categories: Voltage Reference
Quality Control: Learn More
Shunt Voltage Reference IC Adjustable 2.5V 36 VV ±0.5% 100 mA SOT-23-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.5% |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | 82ppm/°C |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | - |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Min/Fixed) | 2.5V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Current - Cathode | 35 µA |
| Current - Output | 100 mA |
| Voltage - Output (Max) | 36 V |
