BUF07703PWP
IC AMP TFT-LCD 20HTSSOPManufacturer: Texas Instruments
Categories: Video Amps and Modules
Quality Control: Learn More
The Texas Instruments BUF07703PWP is a versatile analog buffer designed for driving TFT-LCD display panels. This component, housed in a 20-HTSSOP package, features six independent buffer channels, each capable of delivering rail-to-rail output. With a -3dB bandwidth of 800 kHz and a slew rate of 1V/µs, it is well-suited for high-resolution display applications. The BUF07703PWP excels as a gamma buffer and VCOM driver, providing precise voltage level shifting essential for accurate color reproduction and display uniformity. Its single or dual supply voltage range of 4.5V to 16V offers flexibility across various system designs. This device finds application in consumer electronics, automotive displays, and industrial control systems requiring high-performance analog signal conditioning for visual interfaces.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Applications | TFT-LCD Panels: Gamma Buffer, VCOM Driver |
| Slew Rate | 1V/µs |
| Voltage - Supply, Single/Dual (±) | 4.5V ~ 16V |
| Supplier Device Package | 20-HTSSOP |
| Number of Circuits | 6 |
| Current - Supply | 1.7 mA |
| -3db Bandwidth | 800 kHz |
Request a Quote
Clients Also Buy
BUF04701AIPWR
IC AMP TFT-LCD 14TSSOP
OPA3692IDRG4
IC AMP BUFFER 16SOIC

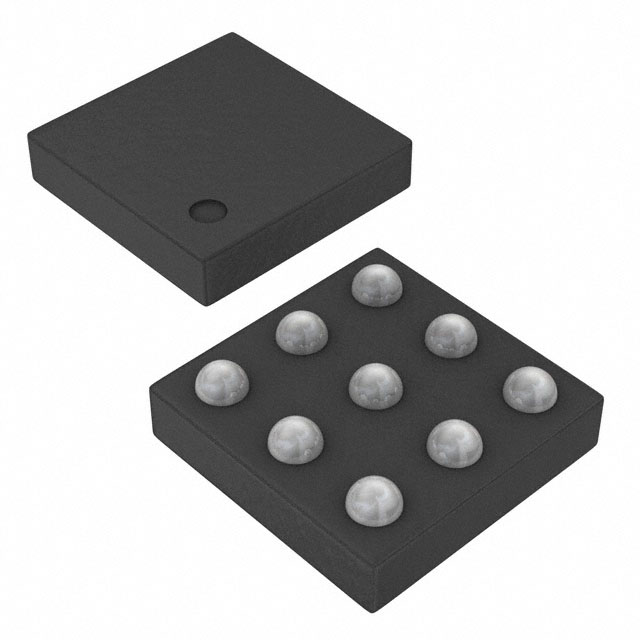

THS7319IZSVR
